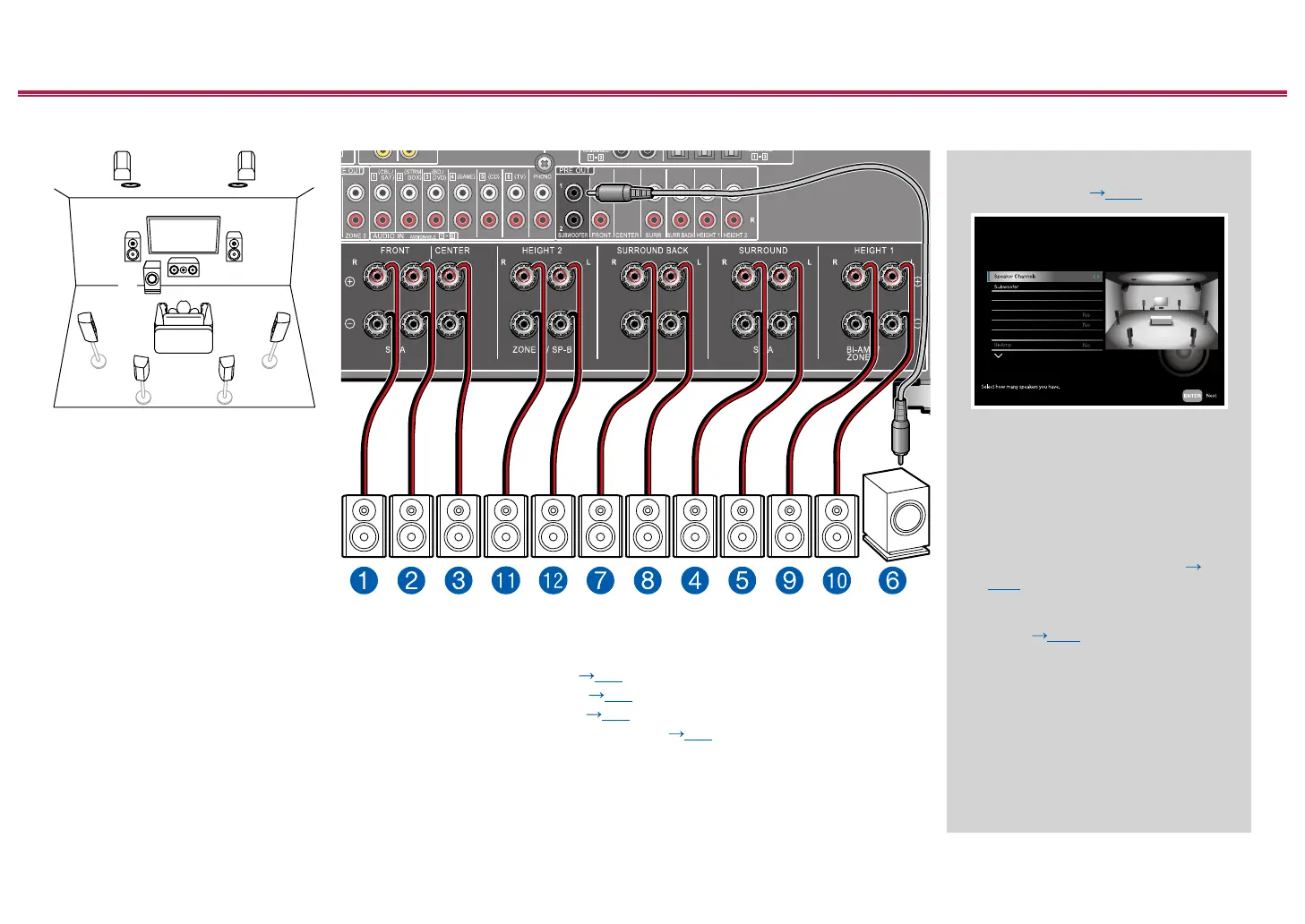

 7.1.4 Channel System







ZONE B
(LINE OUT)
This is an example of combining the top middle speakers at the front and the rear high speakers at the rear to the 7.1
Channel System. The height speakers in front can be selected from following 4 types. The height speakers that can be
combined at the rear differ depending on the height speakers used at the front.
 Combination example when Top Front Speakers are used at the front ( p38)
 Combination example when Top Middle Speakers are used at the front ( p40)
 Combination example when Front High Speakers are used at the front ( p41)
 Combination example when Dolby Enabled Speakers (Front) are used at the front ( p44)
 "Speaker Setup" settings during
Initial Setup ( p203)
Speaker Setup
1 ch
Speaker B
Zone 2 Preout Zone 2
7.1.4 ch
Zone Speaker
Height 1 Speaker
Height 2 Speaker
Top Middle
Rear High
• Speaker Channels: 7.1.4 ch
• Subwoofer: 1ch
• Height 1 Speaker: Select the type of
height speaker actually installed.
• Height 2 Speaker: Select the type of
height speaker actually installed.
• Zone Speaker: No
• Speaker B: No
• Zone 2 Preout: Set any value (
p159)
• Bi-Amp: No
• Symmetry / All Channel Adjust / Front
Align ( p203)
