Planmeca Sovereign - Final Cover Attachments; Cuspidor Bottom Plate

Planmeca Sovereign 147
INSTALLING THE SIDE DELIVERY ARM
Installation manual

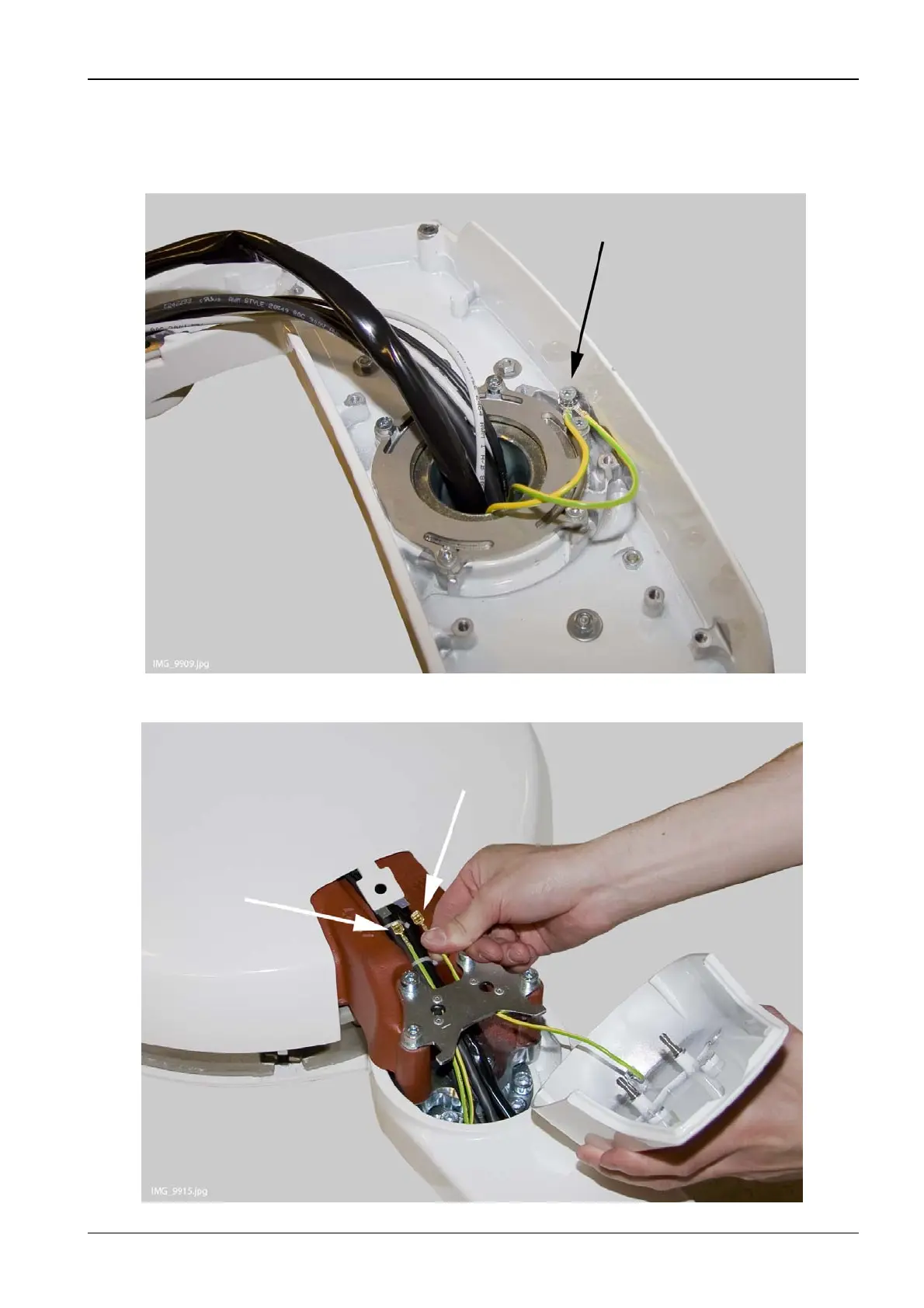

Route the arm cables and tubes to the instrument console. Connect the cables and tubes
according to the instructions given in section 8.5 “Installing the HT instrument console” on
page 78. Note, that two grounding leads coming from the arm must be attached to the
console grounding point. Attach the instrument console cover.
Attach the cuspidor and base covers. Attach the arm and joint cover grounding leads to the
base grounding points and press the base joint cover to its position.
