PRE-INSTALLATION REQUIREMENTS
4 Planmeca Sovereign
Installation manual
3 PRE-INSTALLATION REQUIREMENTS
CAUTION Do not connect items which are not specified as part of the system.
CAUTION Do not connect a Multiple Portable Socket-Outlet or extension cord to the sys-
tem.

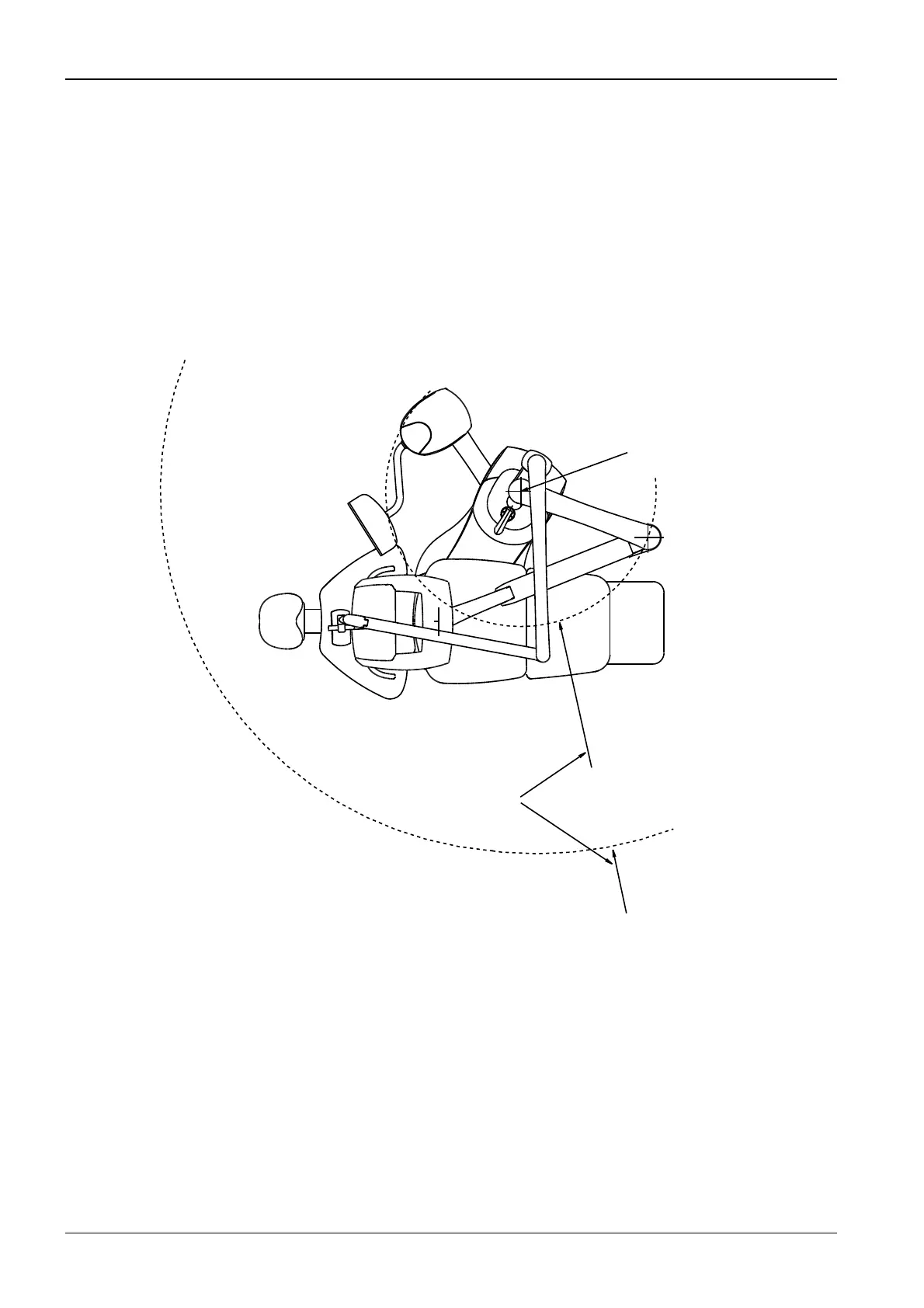

3.1 Arm movements
Dental unit with 3- or 5-function pylon
S75.eps
Inner and outter joint
of balanced arm.
R1600
(63,0")
R600
(23,6")
REFERENCE JOIN
T
for balanced arm.
