OPERATIONS PRIOR TO THE CUSPIDOR ATTACHMENT
14 Planmeca Sovereign
Installation manual
5 OPERATIONS PRIOR TO THE CUSPIDOR ATTACHMENT
WARNING
The unit must be secured to the floor with the screws prior to operation.
NOTE If the floor is not finished yet, but will be cast before unit installation, it is recommended
to use a support for floor tubing when routing the cables and tubes. See section 5.1 “Us-
ing the support for floor tubing” on page 16.
NOTE The concrete or stone floor must be 50 mm (2 in.) thick. The concrete strength must be
type C20/25-C50/60 (According standard EN 206-1:2000), non-cracked concrete. Other-
wise the installation plate must be used. The installation plate must also be used with
wooden floor or similar. Refer to section 5.2 “Attaching the installation plate to the floor”
on page 18.

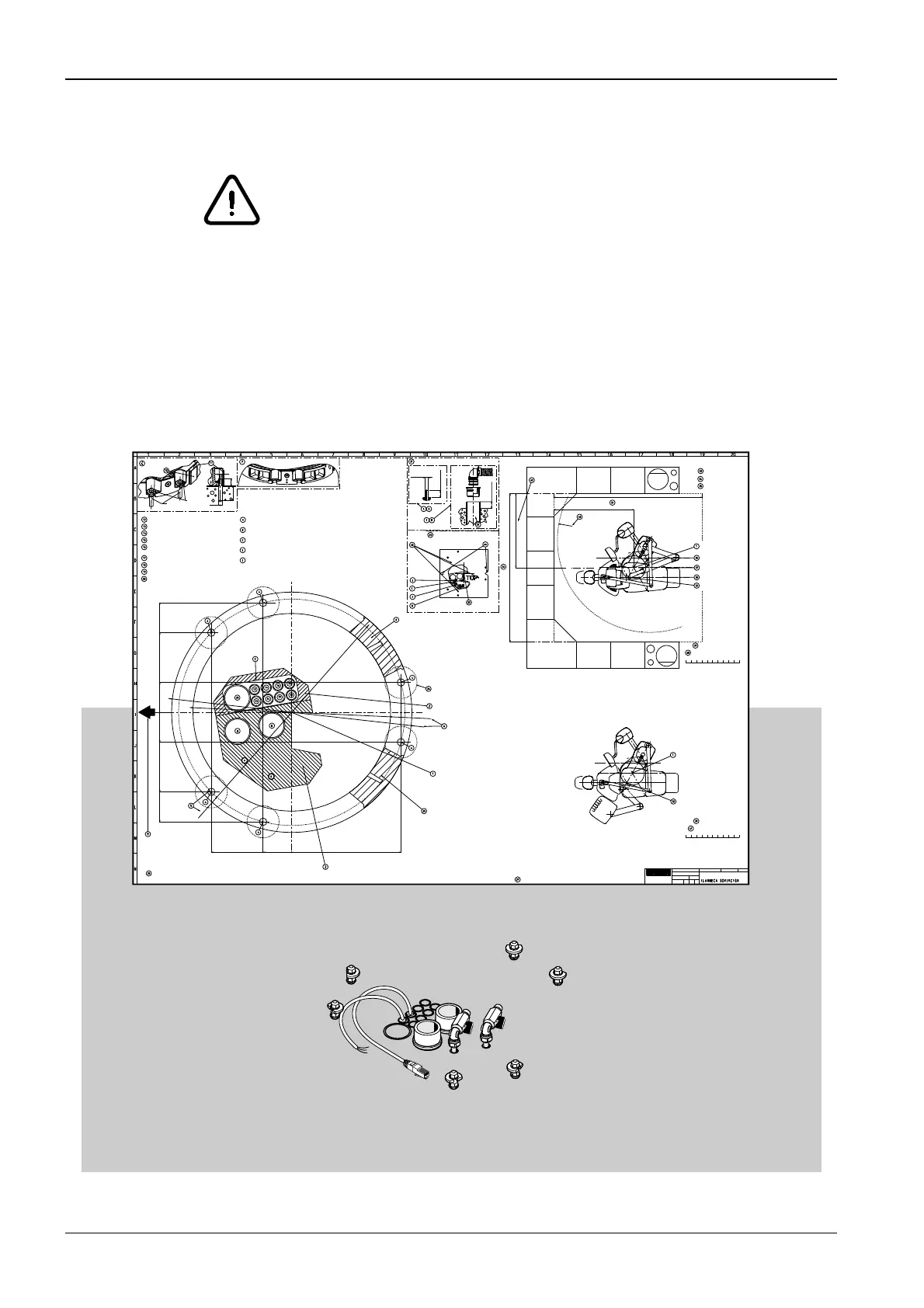

The dental unit will be positioned according to the instructions given in installation pattern
supplied with the dental unit.
