INSTALLING THE PYLON AND ARMS
48 Planmeca Sovereign
Installation manual
8 INSTALLING THE PYLON AND ARMS
8.1 Installing the pylon
NOTE Both the pylon for the fixed OP deliver y arm and the lower pylon part for rotating OP de-
livery arm are installed according to the instructions given in this section. The figures
shown are from longer pylon.
The cuspidor position must be adjusted before checking the pylon attachment plate position.
Refer to the section 6.4 “Checking the vertical position of the cuspidor” on page 32. The pylon
adjustment cannot be corrected with the pylon attachment plate adjustment.

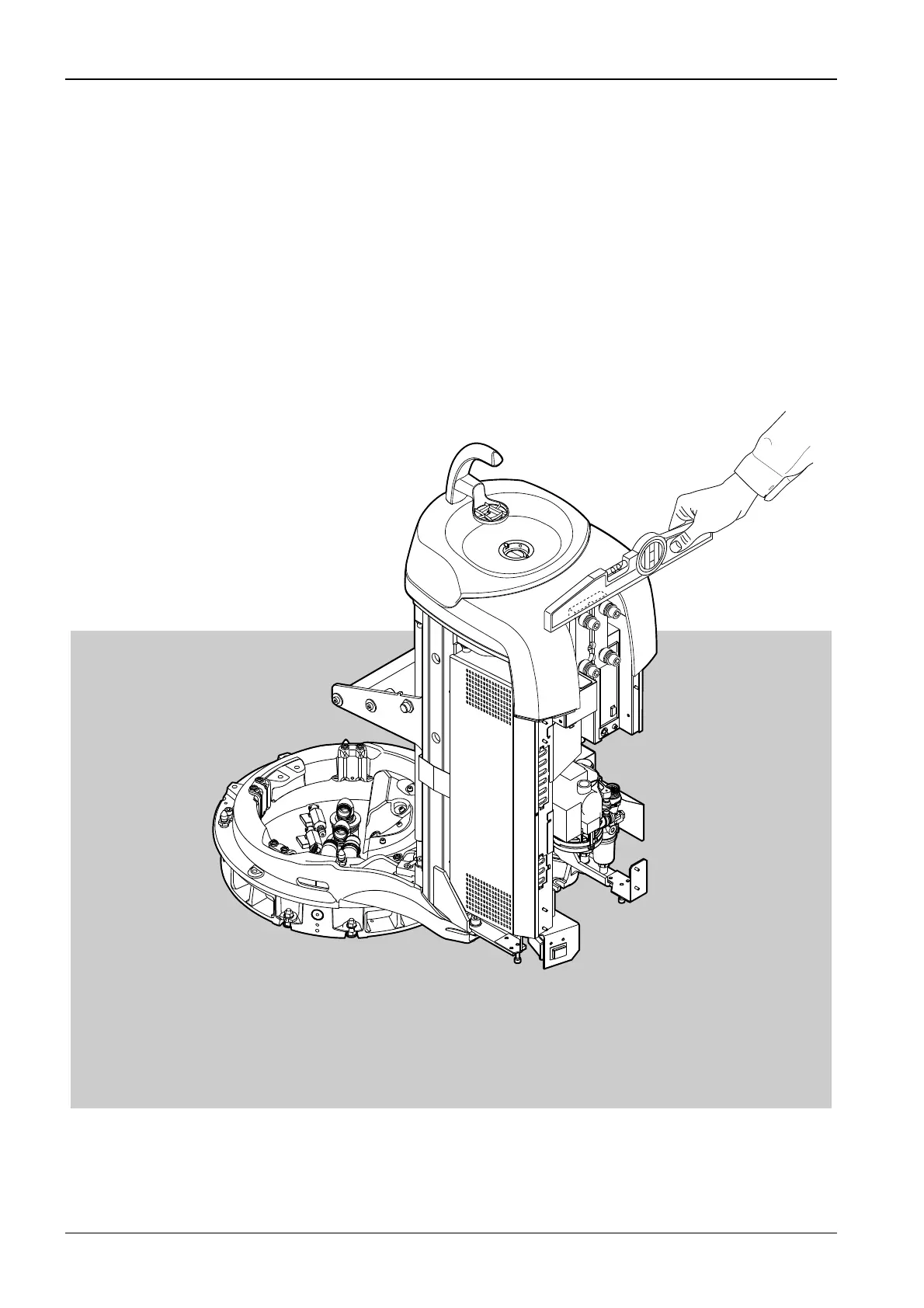

Check the sideways position of the pylon attachment plate using a spirit level.
S7_1.eps
