Planmeca Sovereign - Connecting the Cables

Planmeca Sovereign 37
INSTALLING THE CUSPIDOR
Installation manual
6.6 Connecting the cables
WARNING
Ensure that the mains leads are not connected to any power source
before connecting them to the unit.

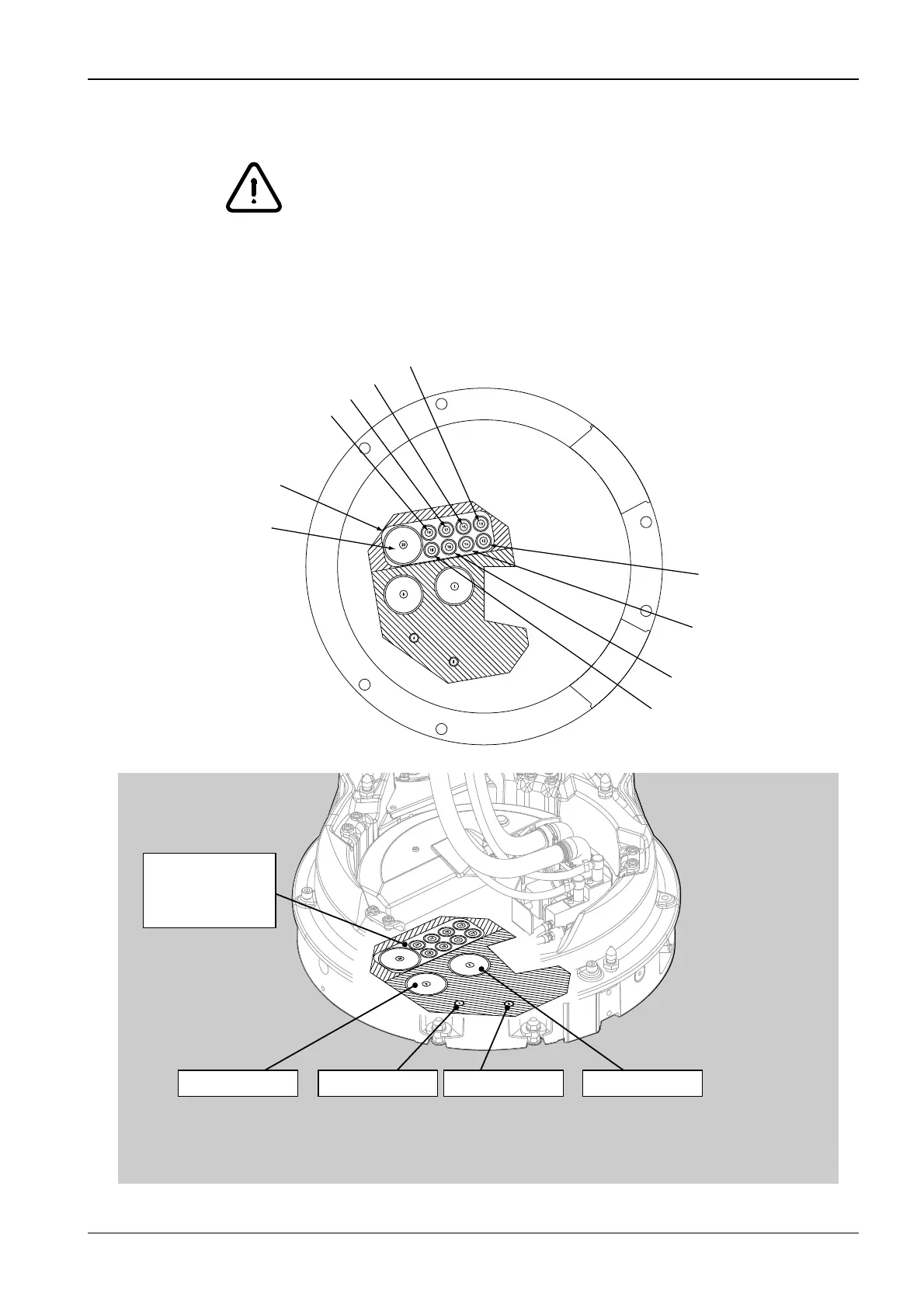

Route all the cables that come from the floor into the cuspidor base.
S6_5.eps
WATER SUPPLYSUCTION LINE DRAIN LINEAIR SUPPLY
Connection area
for electricity and
telecommunication
MAINS SUPPLY 3x2,5mm2 (230V 10A)
Ethernet cable
Dixi cable
Suction motor control cable 2x1.5mm2
VGA cable/ power supply (optional)
Connection area for
electricity and telecommunication
Assistant call/ Door opening
cable 4x0.75mm2
Intra cable
Video cable
Oral X-ray cable
