INSTALLING THE CUSPIDOR
32 Planmeca Sovereign
Installation manual
6.4 Checking the vertical position of the cuspidor

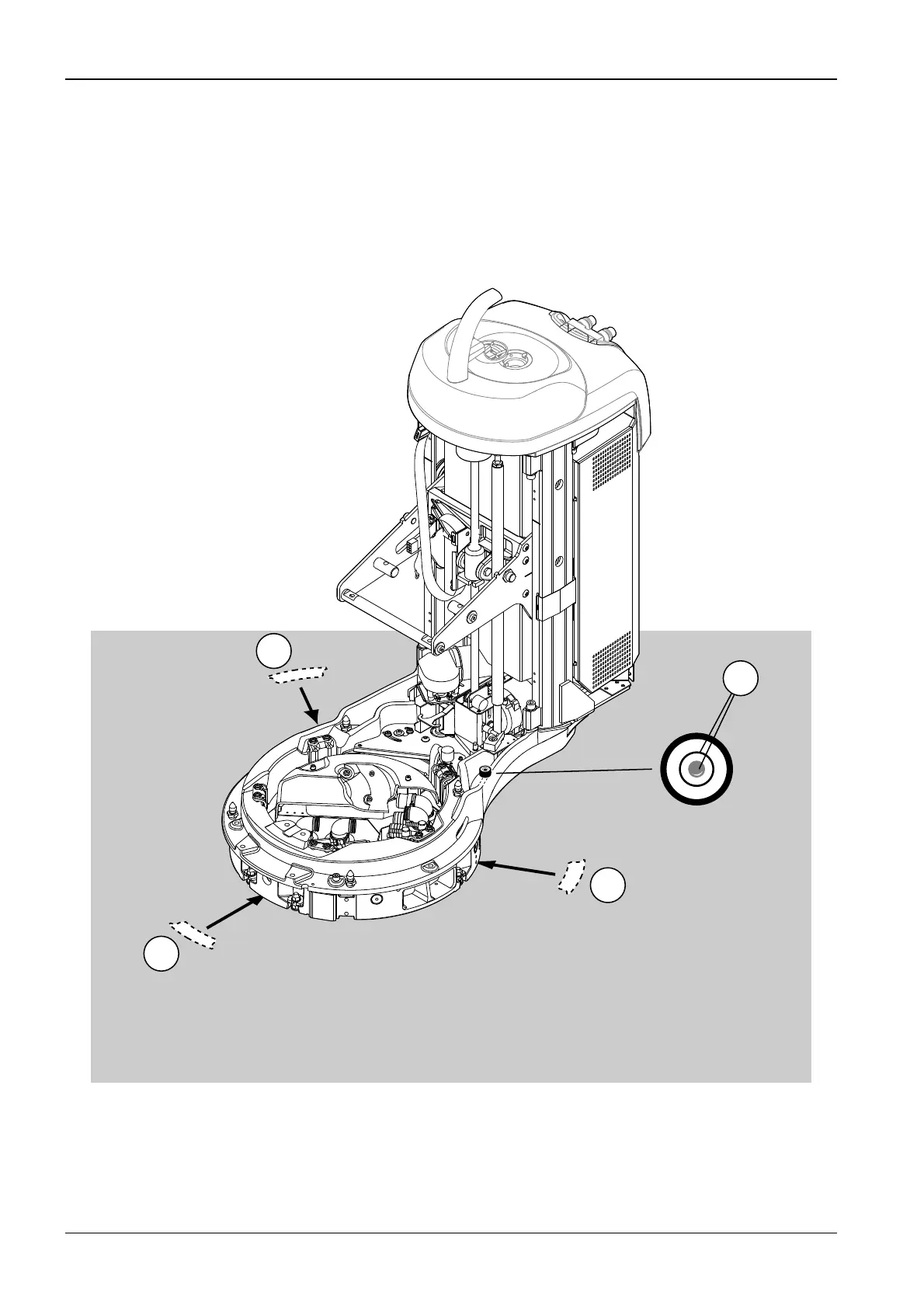

Check the vertical position of the cuspidor with the small round spirit level attached to the
base. The air bubble must be inside the black circle (1).
Adjust the cuspidor position as described below, if needed.
The vertical position of the cuspidor is adjusted with adjustment plates supplied with the unit
(2). Loosen the adjustment nuts and place the plate(s) between the cuspidor base and floor
until the cuspidor is vertical. Re-check the cuspidor position and add more plate(s), if needed.
S67_2.eps
1
2
2
2
