INSTALLING THE CUSPIDOR
Installation manual

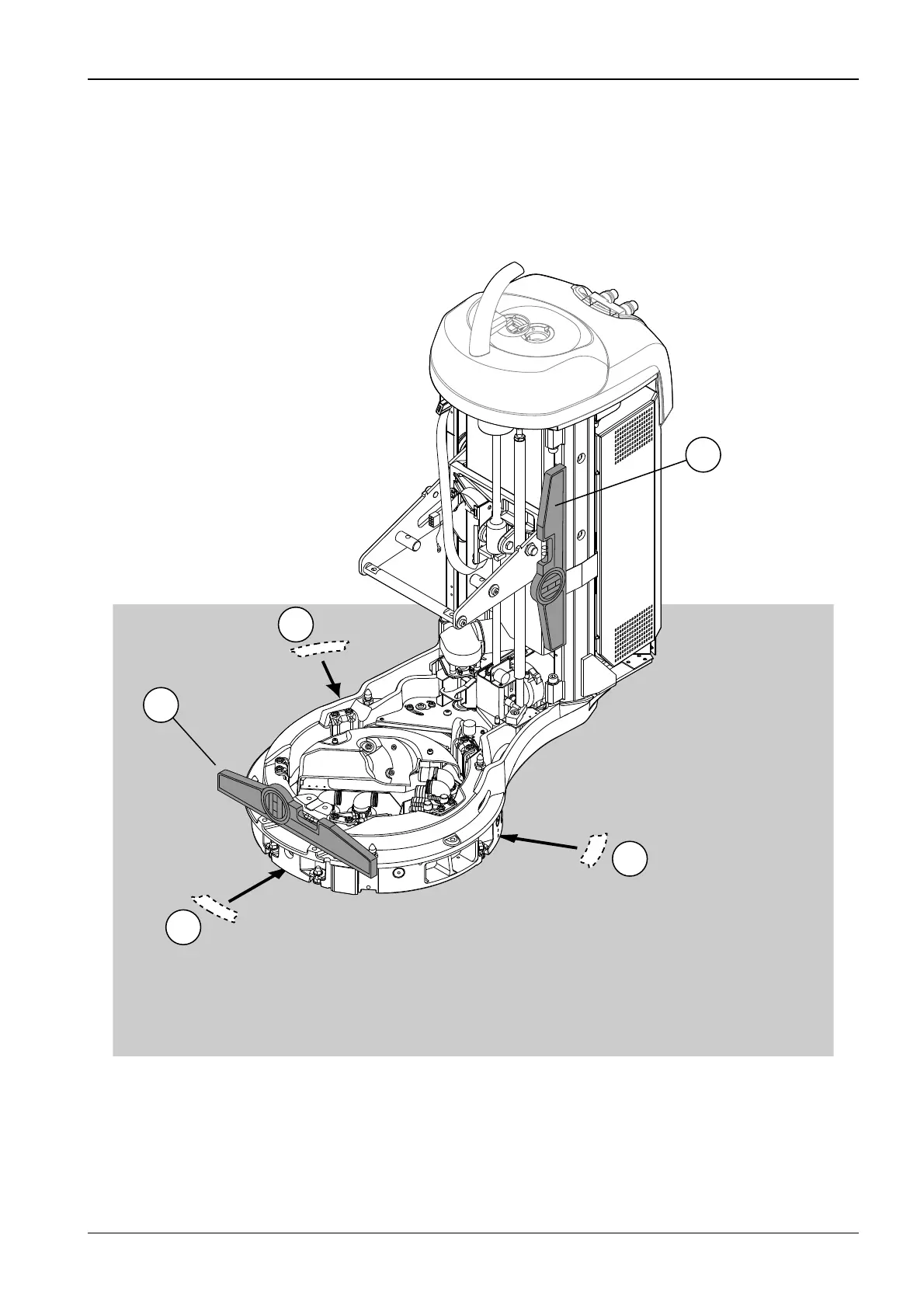

You can also check the vertical position as follows: Check the vertical position of the cuspidor
using a spirit level. Place the spirit level onto the base footing (1) and to the lifting column (2)
as shown on the figure below.
Adjust the cuspidor position as described below, if needed.
The vertical position of the cuspidor is adjusted with adjustment plates supplied with the unit
(3). Loosen the adjustment nuts and place the plate(s) between the cuspidor base and floor
until the cuspidor is vertical. Re-check the cuspidor position and add more plate(s), if needed.
S67_1.eps
1
2
3
3
3
