6.5 Connecting the service tubes
When connecting the service tubes observe local and national plumbing regulations as well
as the instructions given in section 3 “PRE-INSTALLATION REQUIREMENTS” on page 4.
Before connecting the air and water tubes make sure that you have correctly identified the
floor tubes. Even when they are already labelled it is good to double-check them.
The main water and air valves are located in the cuspidor base. Connect the water and air
inlet tubes to the corresponding angle nipples on the floor.

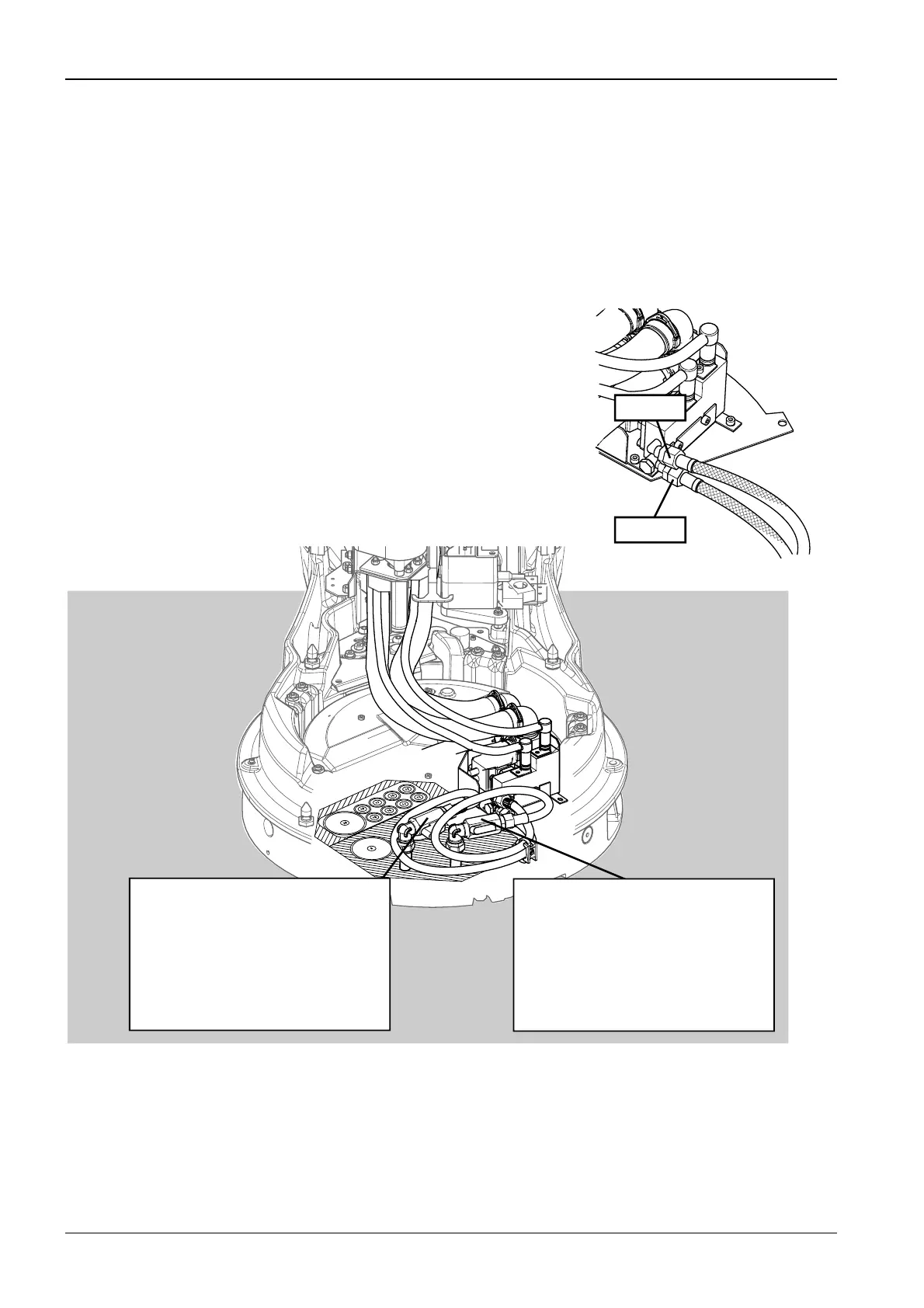

S232.eps
WATER SUPPLY PIPE
Water pressure 300-900kPa.
Copper pipe Ø12/10mm (0.5"/0.4")
At the pipe end a nipple
with female thread R1/4"
AIR SUPPLY PIPE
Air pressure 550-900kPa.
Copper pipe Ø12/10mm (0.5"/0.4")
At the pipe end a nipple
with female thread R1/4"
WATER
AIR
