INSTALLING THE PYLON AND ARMS
Installation manual

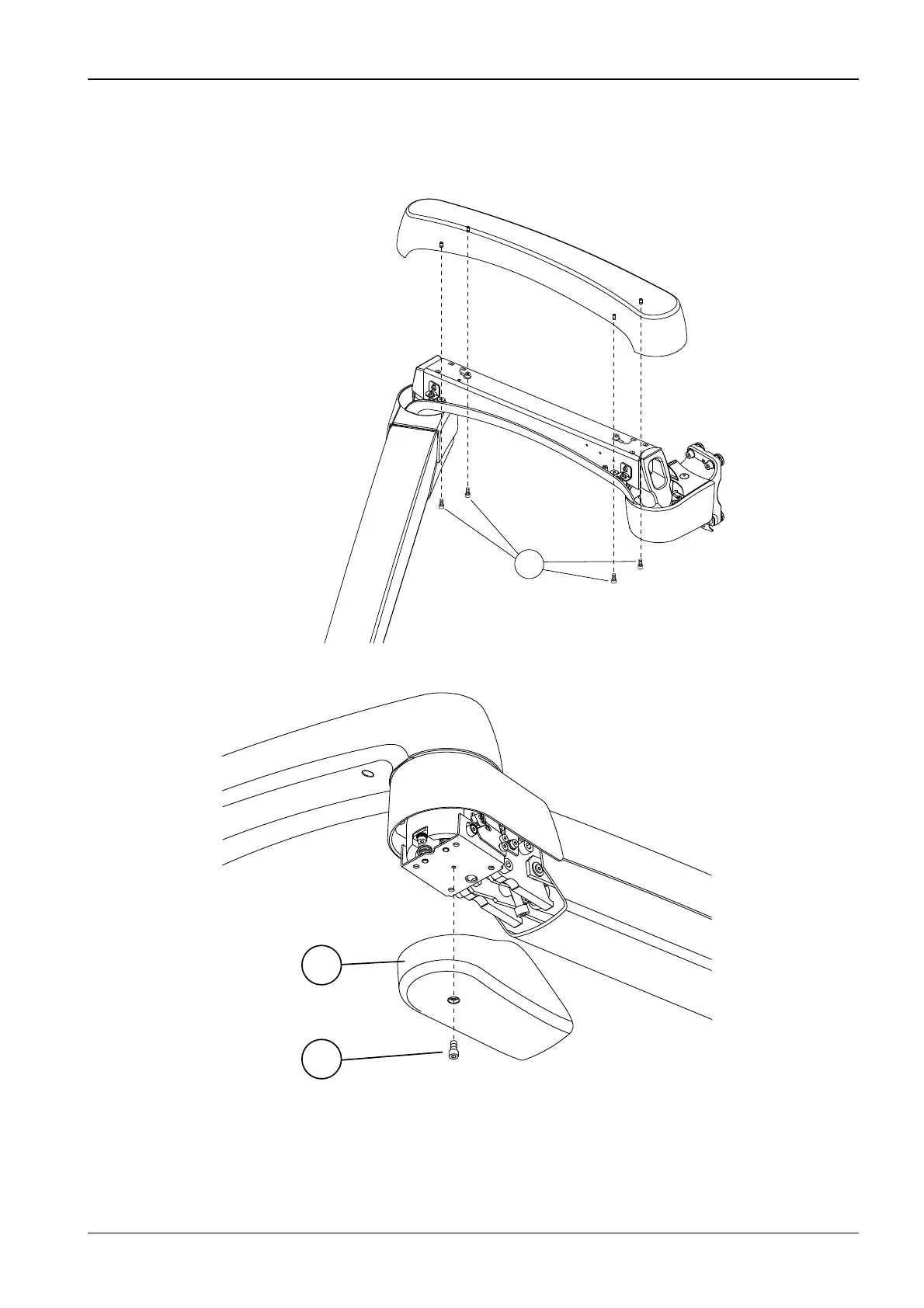

8.6 Attaching the OP delivery arm covers
Fixed OP delivery arm: Attach the console bracket cover to its position with four attachment
screws (1).
Attach the OP-delivery arm middle joint cover (2) with one attachment screw (1).
1
S21_1.eps
S130.eps
1
2
