Planmeca Sovereign - Floor Installation Plate Attachment

OPERATIONS PRIOR TO THE CUSPIDOR ATTACHMENT
18 Planmeca Sovereign
Installation manual
5.2 Attaching the installation plate to the floor
Installation plate

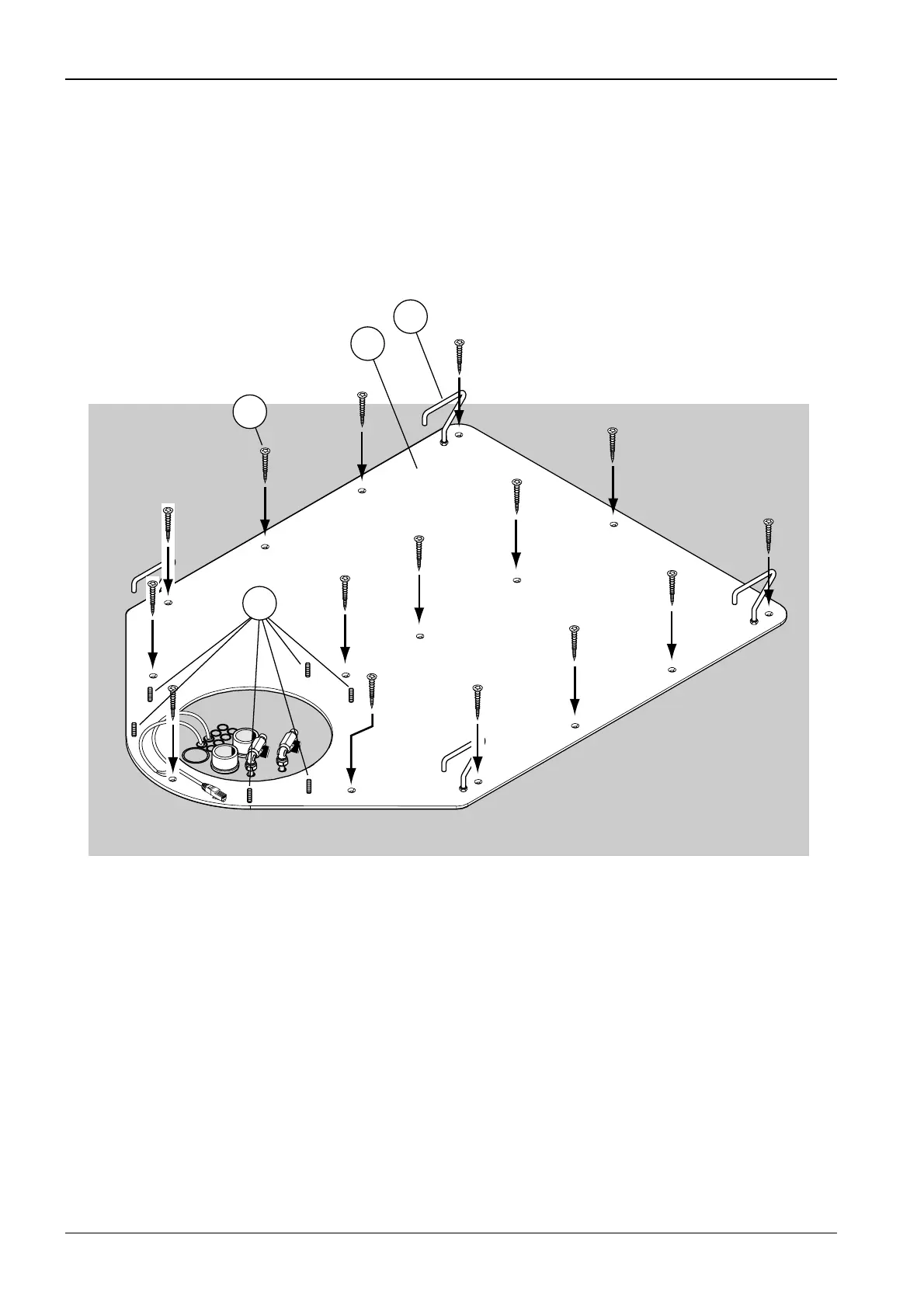

Attach the handles (1) to the installation plate (2) and move the plate to the installation place.
Attach the plate to the floor with 6x40 torx screws (3).
Attach the base attachment screws to the installation plate (4). Install the cuspidor to the plate
according to the instructions given in section 6 “INSTALLING THE CUSPIDOR”.
S211.eps
2
1
4
3
