INSTALLING THE SEPARATE CONNECTION CASE (OPTIONAL)
42 Planmeca Sovereign
Installation manual
7 INSTALLING THE SEPARATE CONNECTION CASE
(OPTIONAL)
NOTE The separate connection case cannot be used with motorised base.
NOTE The connection case must be in touch with the base. The case can be shortened.

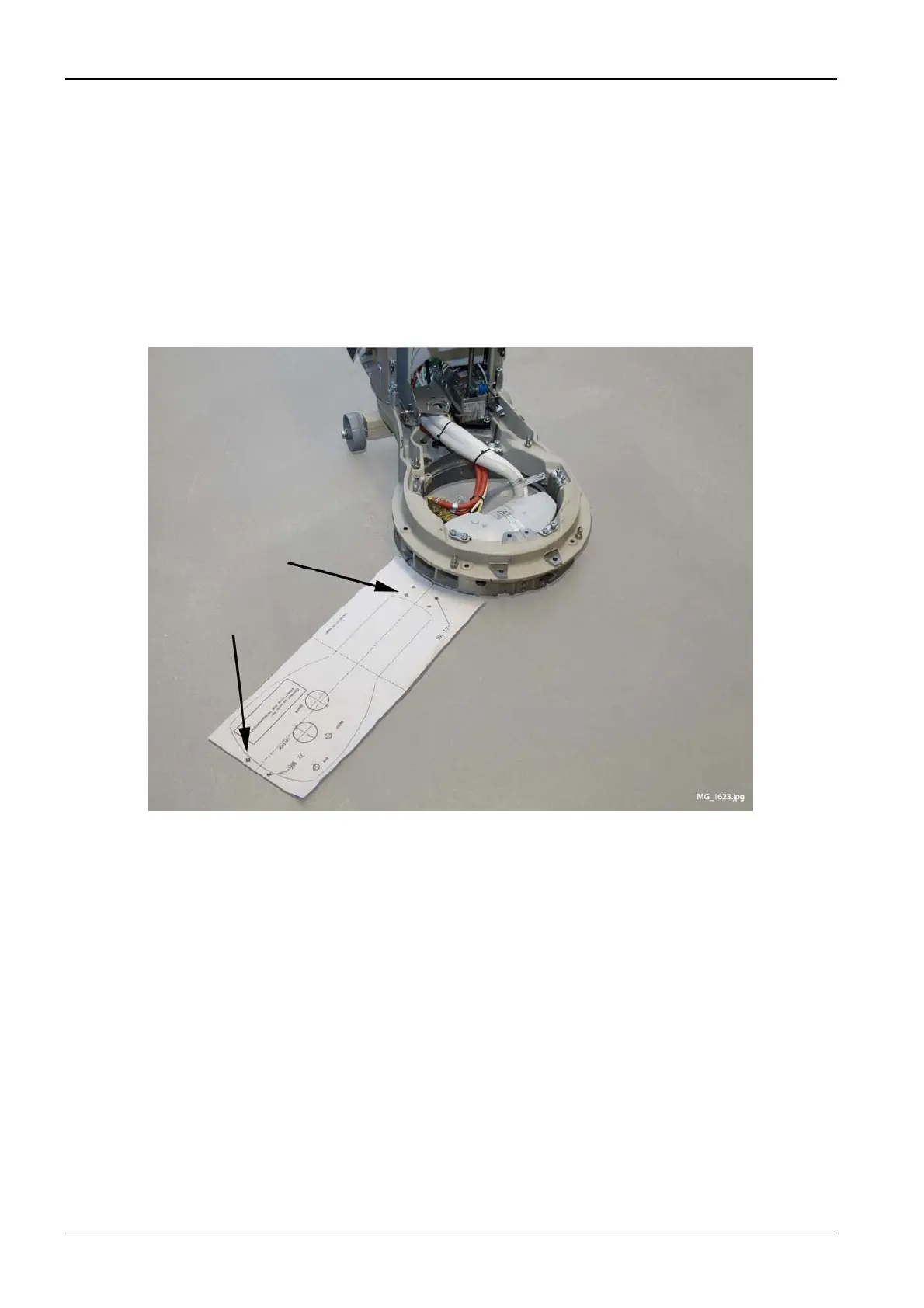

Use the installation pattern as a template to position the connection case over the cables, the
water/air inlets and the suction/drain tubes that come from the floor. Mark the positions of the
case attachment screws to the floor.
If the floor is made of wood or similar, use the installation plate (refer to section “Installation
plate with separate connection case”.
