Planmeca Sovereign 41
INSTALLING THE CUSPIDOR
Installation manual
NOTE These leads must not operate the suction motor, nurse call or door opening equipment.
They serve as control leads with a relay on the Filsu PCB acting as an on/off switch. The
maximum rating of the relay is 240V~/10A. The equipment to be controlled must be sup-
plied with operating power from another source.
Turn the shield back above the mains terminal and attach the two attachment screw. Connect
the cables of optional equipment to respective connectors.
NOTE See also figure on section 19 “CONNECTIONS” on page 181.
Place the mains terminal cover to its position and tighten two attachment screws.

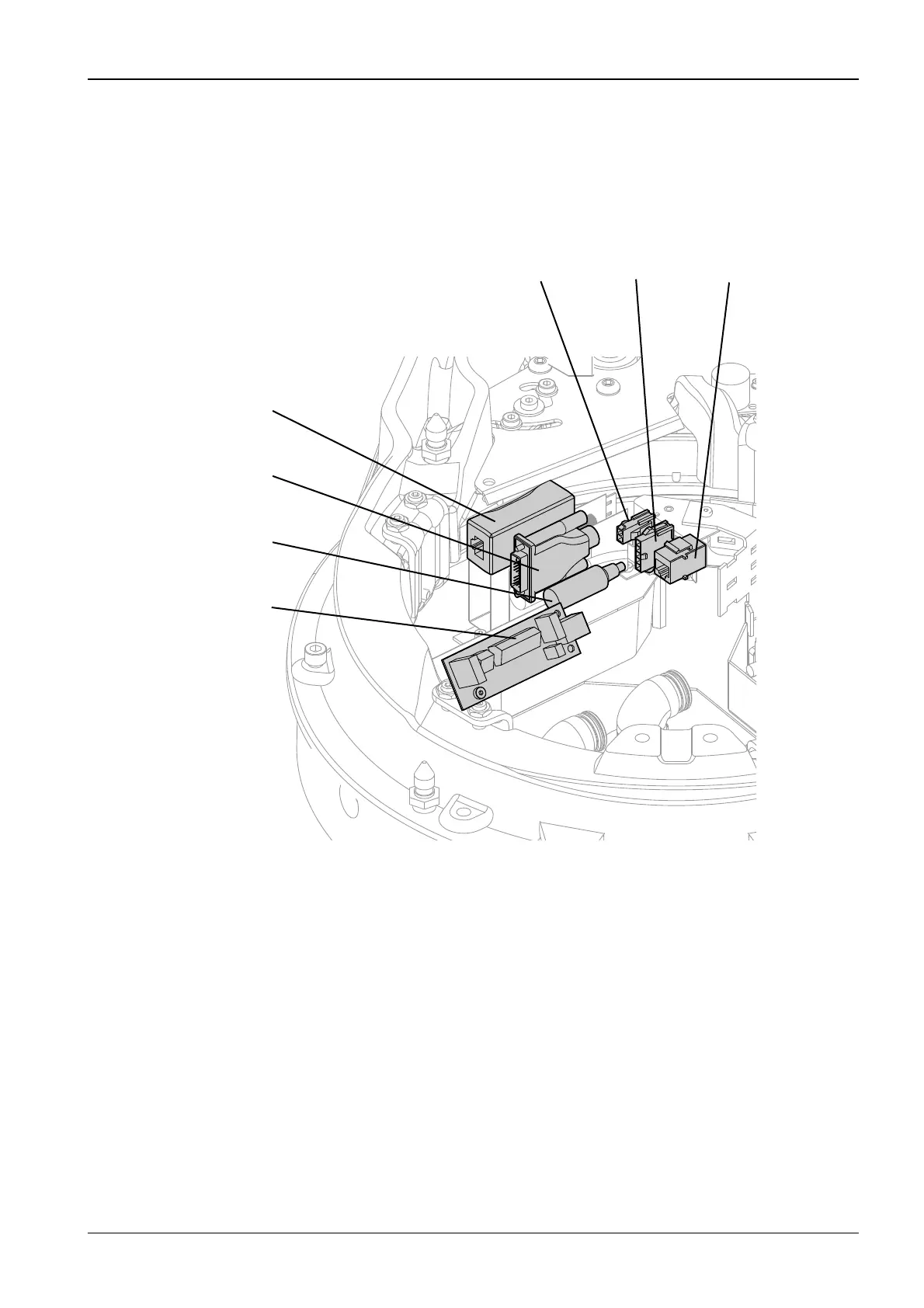

Ethernet Isolation
VGA Ext. Cable
S-Video
Intra
RS-232 IsolationXCAN
Monitor-DC
S127.eps
