INSTALLING THE CUSPIDOR
40 Planmeca Sovereign
Installation manual
Connect the grounding lead to the brass grounding point. Connect the neutral lead of the
power supply cable to the terminal marked MAINS N on the terminal block. Connect the line
lead of the cable to the terminal marked MAINS L. Attach the strain reliefers. Stranded
conductors must not be soldered.
WARNING
Notice that the mains voltage is always present at the mains terminal even, if
the unit is switched off from its own mains switch.
If required, connect the suction motor, door open and assistant call cables to the respective
terminals. Shorten the cable if necessary.

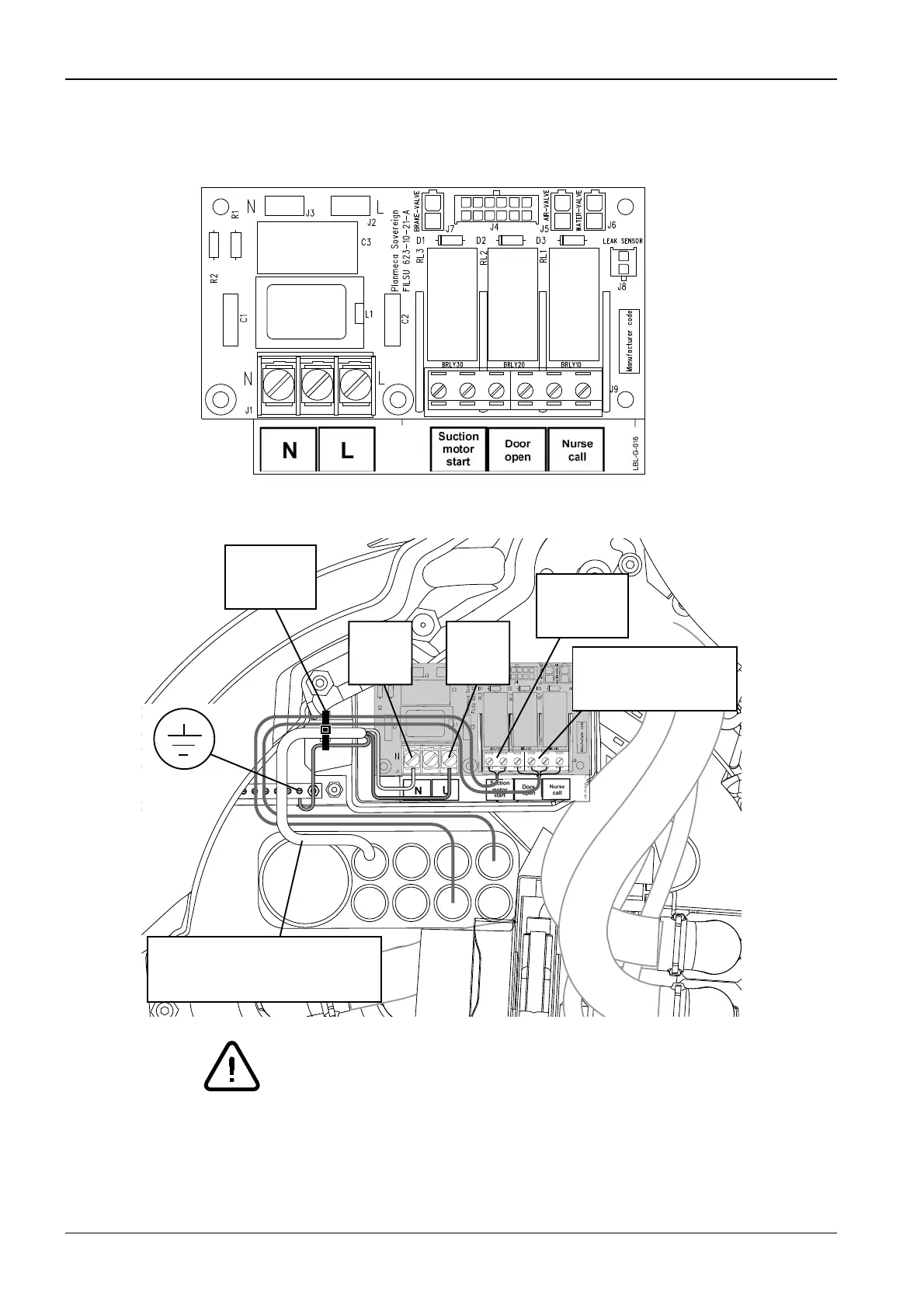

S36_3.eps
Ground
MAINS SUPPLY 3x2,5mm2
(230VAC, 10A)
N
L
Strain
reliefer
Suction
motor
Assistant call/
Door opening
To Next Page
