8.5 Installing the HT instrument console
Cut the cable tie that binds the arm cables and tubes. Route the cables and tubes through the
arm opening as shown on the figure below.

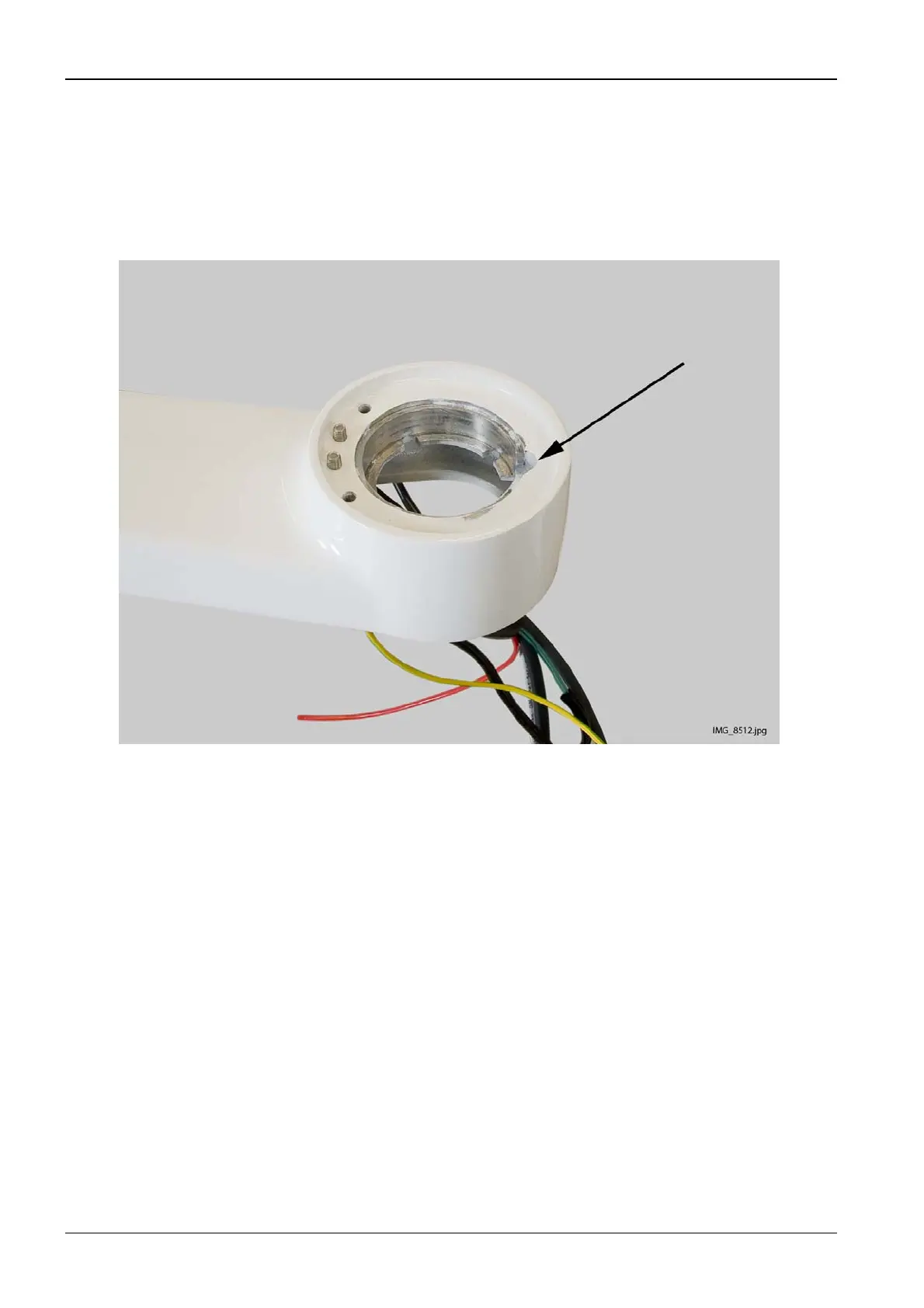

Lift the instrument console to its position so that the pin on the console goes into the arm
groove (arrow on the figure below).
