Planmeca Sovereign 79
INSTALLING THE PYLON AND ARMS
Installation manual

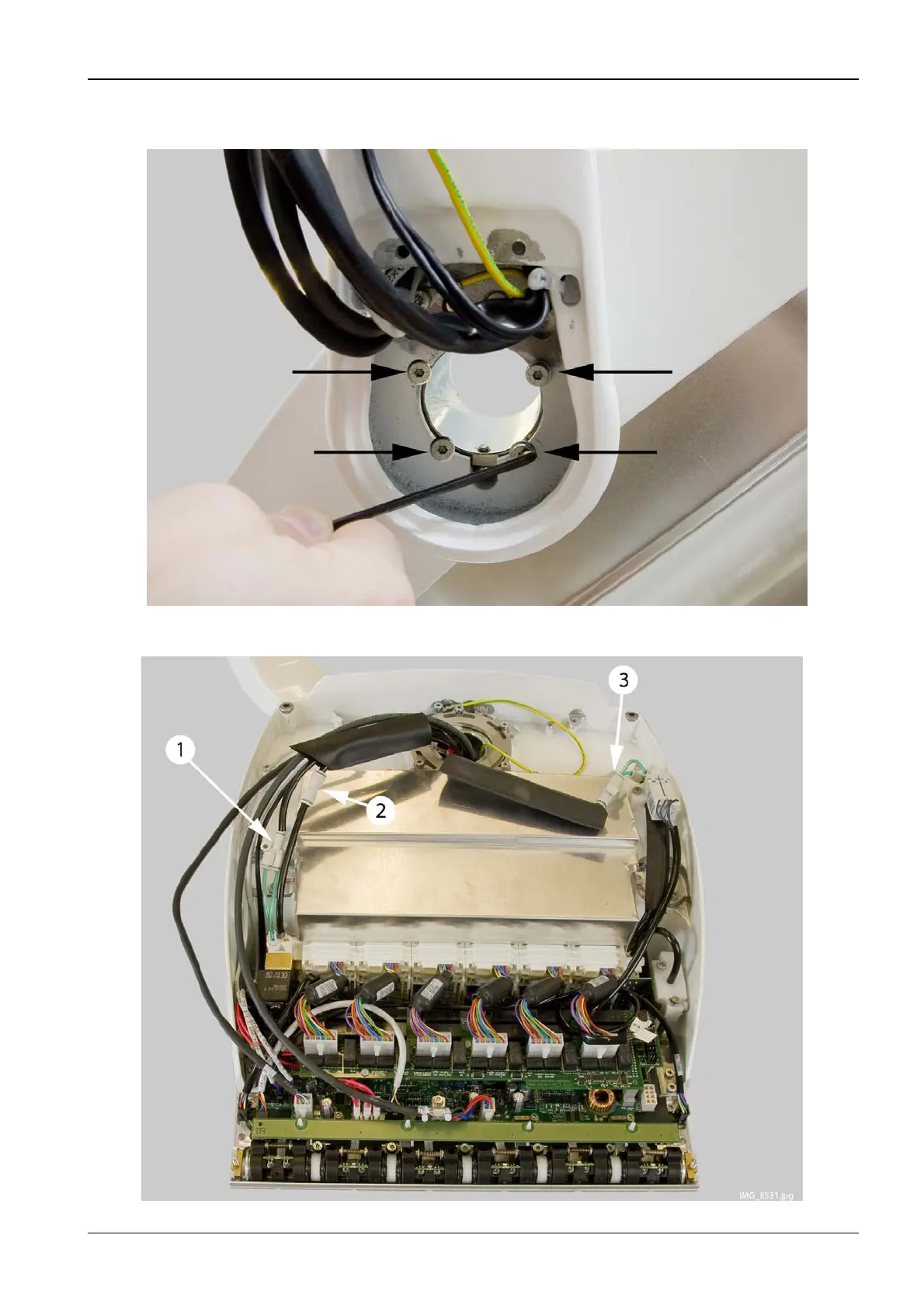

Attach the instrument console to the console arm with four attachment screws using a 3 mm
Allen key.
Route the arm cables and tubes to the instrument console. Connect the arm water (1), air (2)
and return water (3) tubes as shown on the figure below.
