INSTALLING THE PYLON AND ARMS
74 Planmeca Sovereign
Installation manual
8.4 Installing the balanced arm instrument console

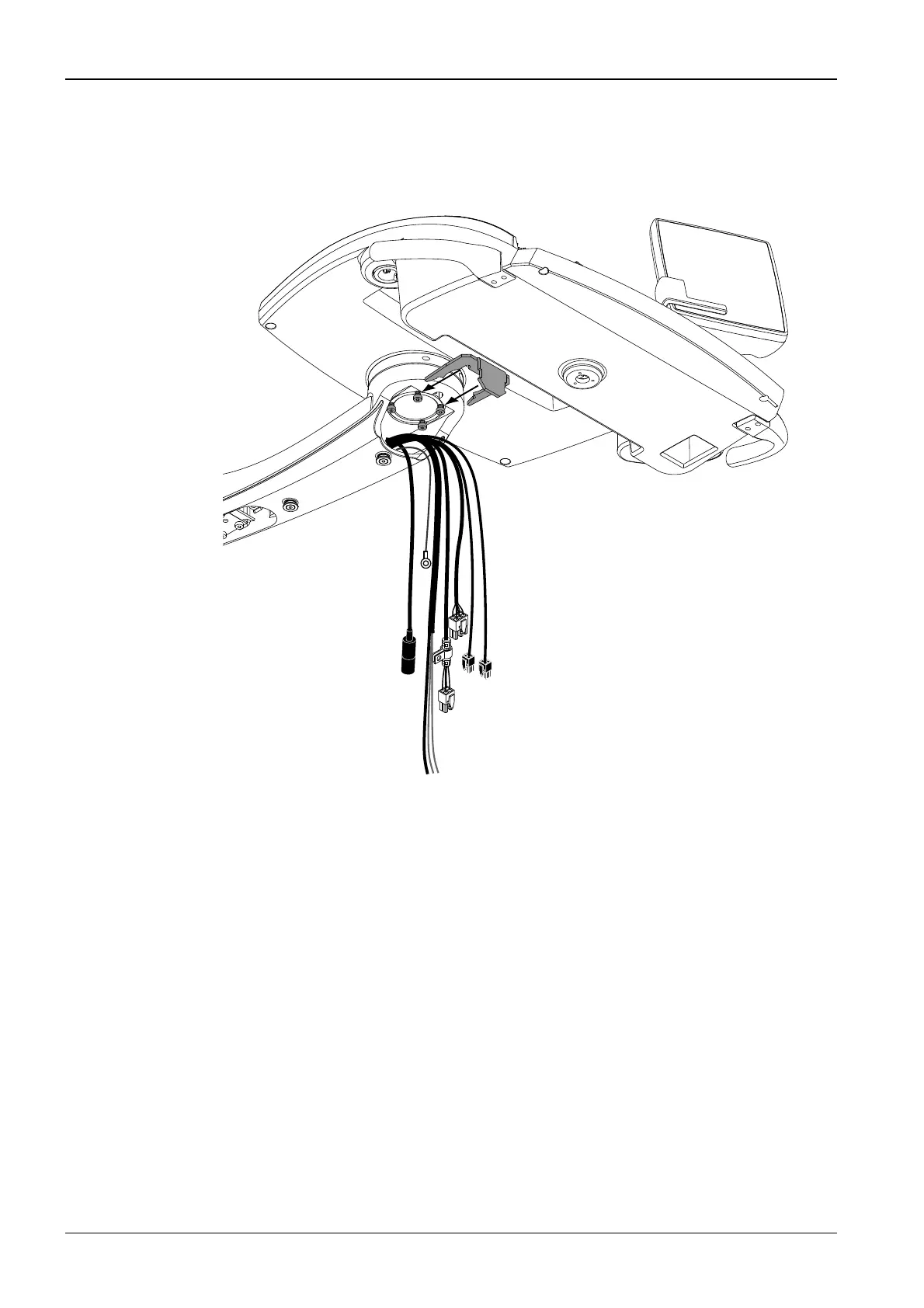

Attach the instrument console to the console bracket using the support plate. Tighten the
attachment screws using a 3 mm Allen key.
Route the arm cables and tubes to the instrument console.
S20_1.eps
