Planmeca Sovereign 73
INSTALLING THE PYLON AND ARMS
Installation manual

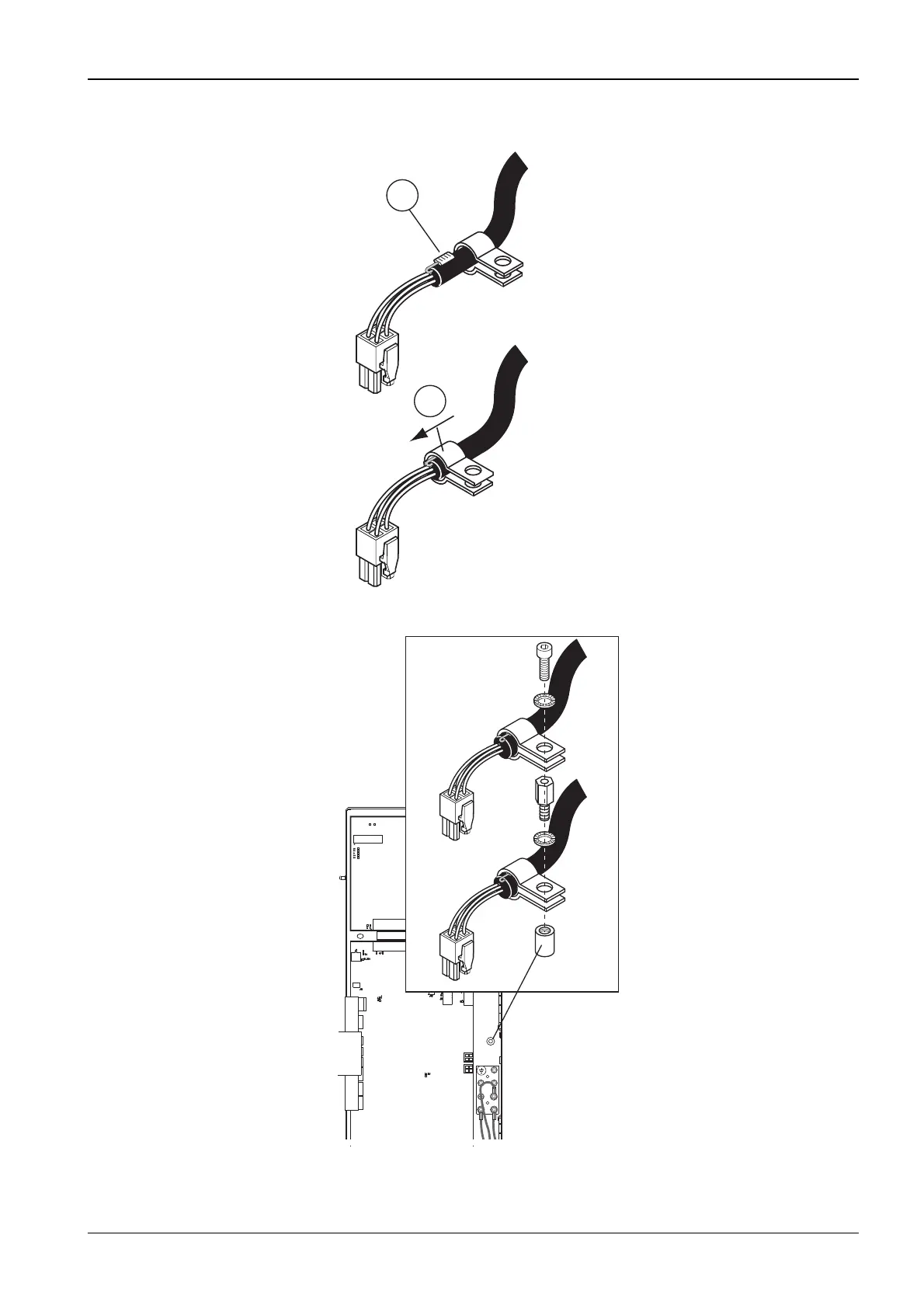

Check that the ground clip is correctly positioned (1) and slide the grounding collar over the
clip (2).
Secure the Selv cable connected to connector J2 as shown on the figure below.
If instrument console is equipped with Intraoral video camera, connect the S-video cable
according to the instructions given in section 9.3 “Installing the monitor to the pylon” on page
83,
1
2
S254.eps
J14
J2
J2
J14
S137_1 .eps
OP-Arm SELV Cable
Assistant-Arm
SELV Cable
