INSTALLING THE PYLON AND ARMS
72 Planmeca Sovereign
Installation manual

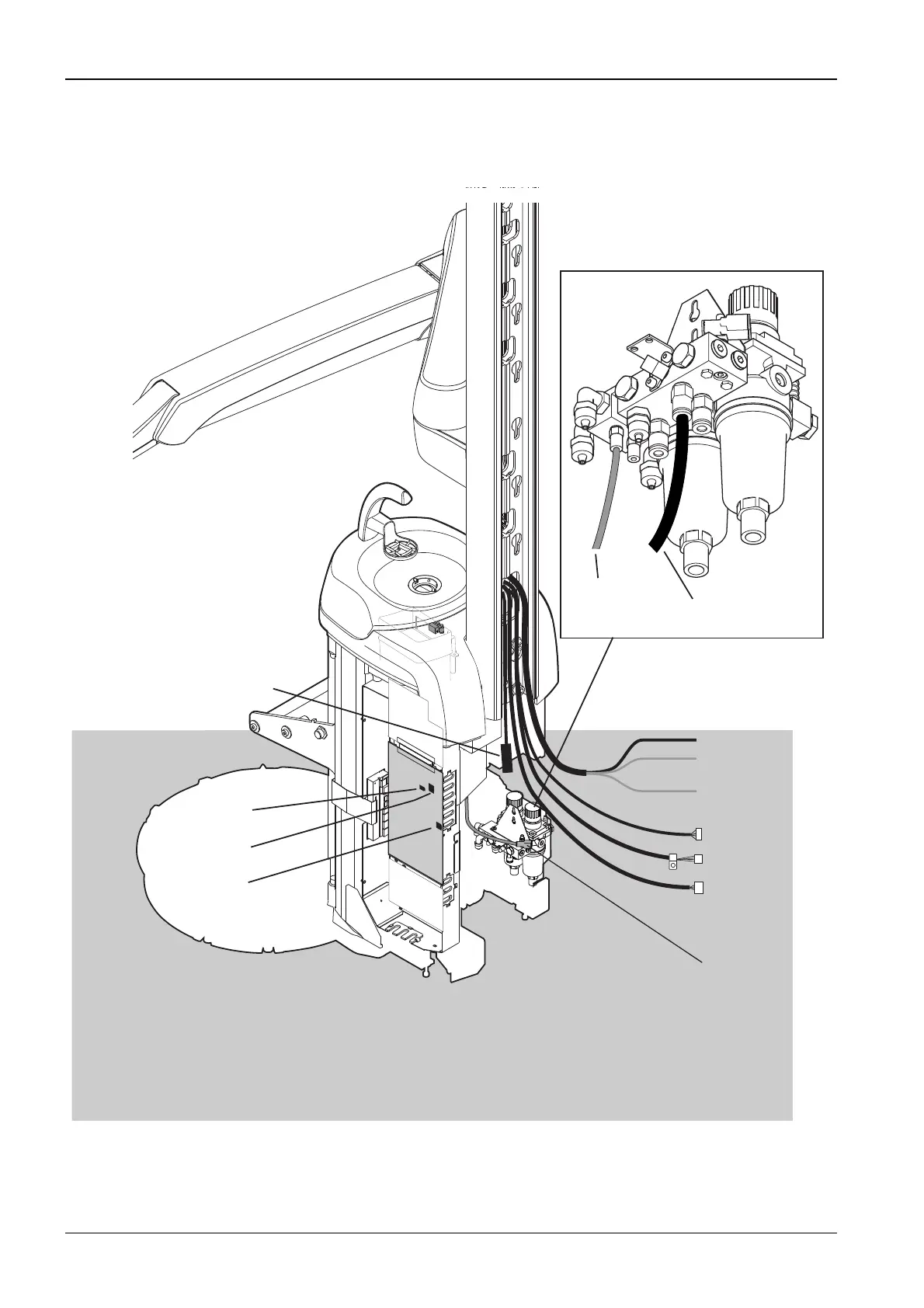

Connect the cables to connectors on the UPSU PCB as shown on the figure below (refer also
to the Sovereign wiring diagram).
Route the arm tubes into the cuspidor and behind the suction system attachment plate to the
block. Connect them as shown on the figure below.
S112_3 .eps
01-J2
01-J19
01-J9
Return water
3.2/1.6 Red
Instr. water
3.2/1.6 Green
Air 6/4 Black
01-J2
01-J19
01-J9
Return water
3.2/1.6 Red
Instr. water
3.2/1.6 Green
Air 6/4 Black
S-Video cable
