Planmeca Sovereign 75
INSTALLING THE PYLON AND ARMS
Installation manual

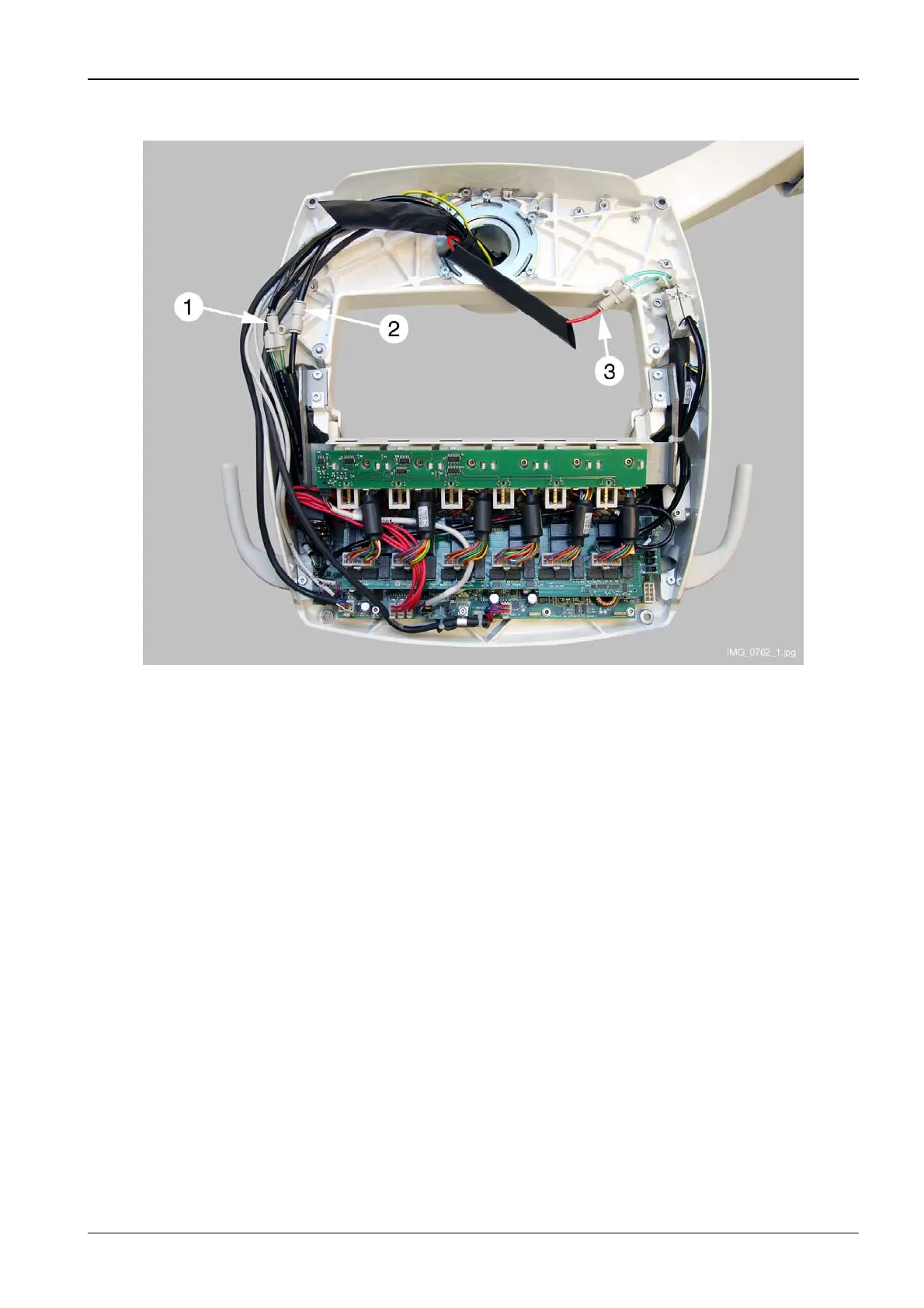

Connect the arm water (1), air (2) and return water (3) tubes as shown on the figure below.
