INSTALLING THE PYLON AND ARMS
80 Planmeca Sovereign
Installation manual

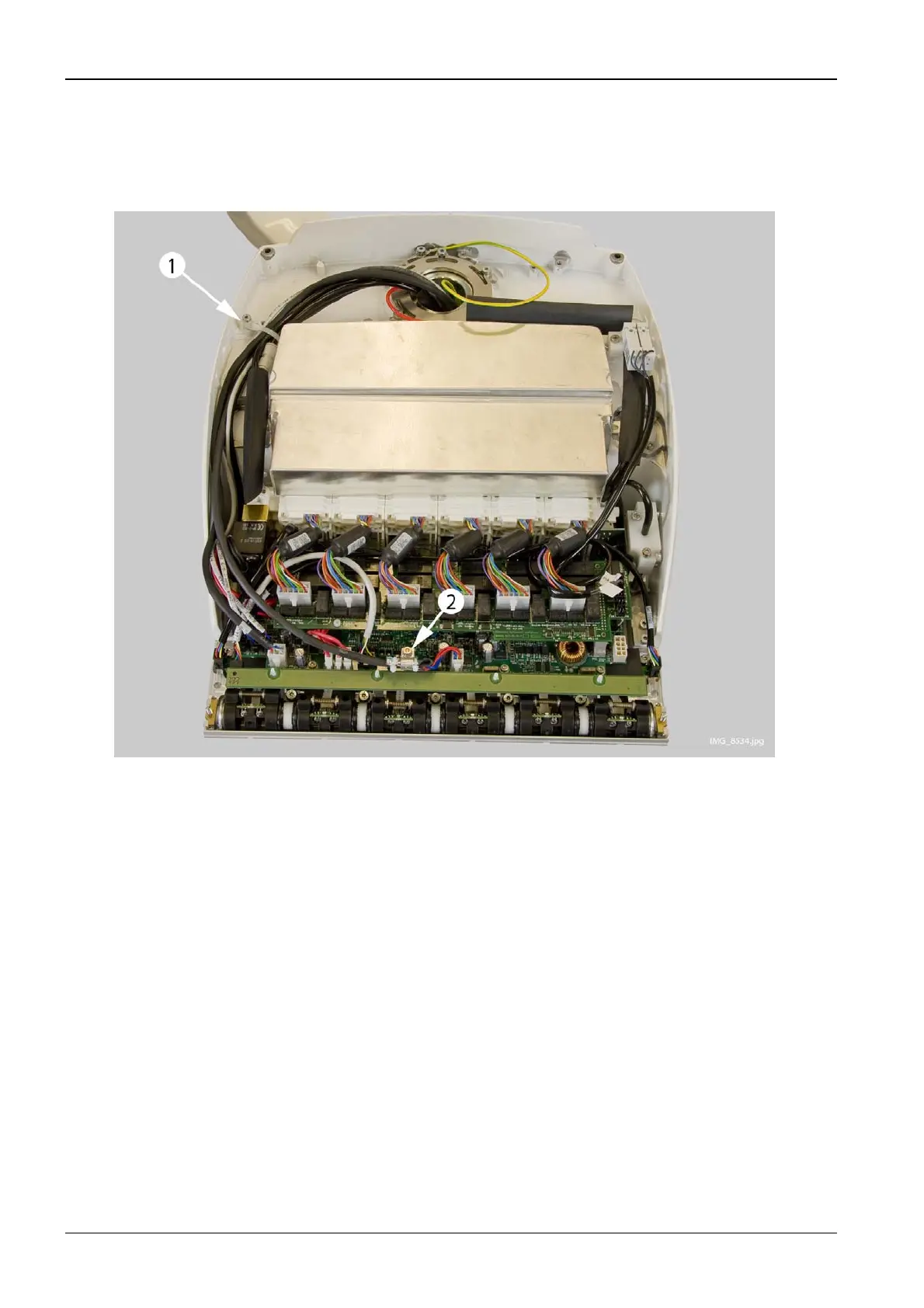

Connect the cables as shown on the figure below.
Cover the water tube connections with protective sleeves.
Secure the cables with cable ties (1). Secure the Selv cable connected to connector P7 with
one attachment screw (2).
