Planmeca Sovereign 35
INSTALLING THE CUSPIDOR
Installation manual
NOTE Notice that there is no need to make an additional drain trap to the drain tube.
NOTE Connect the drain and suction tubes in a way that the connections do not cause any
pull-out force to the ends of the tubes.

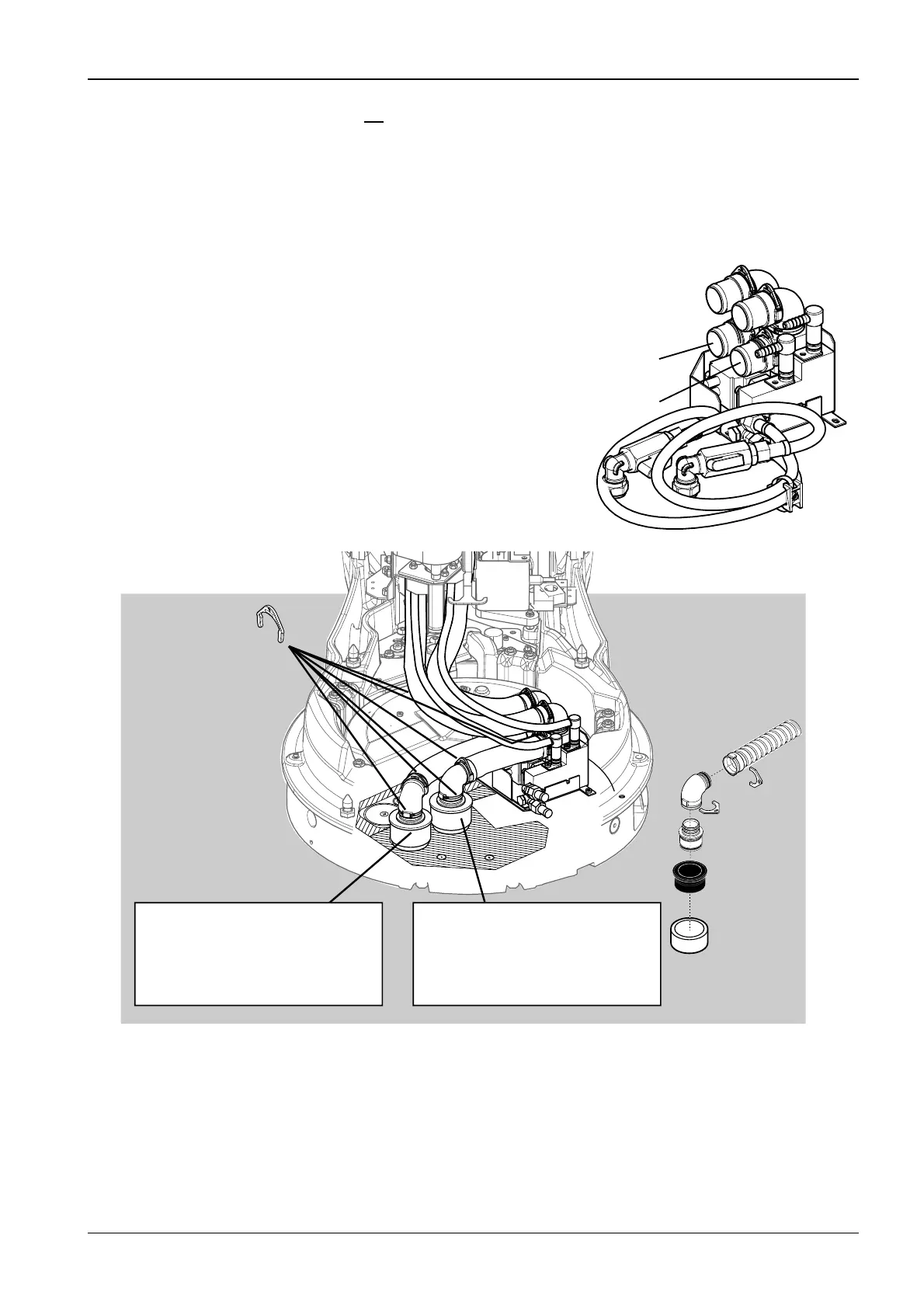

Disconnect the suction and drain tubes coming from inside the cuspidor to make the floor
tube connection easier.
Shorten the tubes if necessary. Connect the drain/suction tubes to the suction and drain
nipples inside the cuspidor base. Secure the tubes with attachment rings.
Re-attach the suction and drain tubes coming from the cuspidor.
S233.eps
DRAIN LINE PIPE
Plastic pipe Ø50/46mm (2.0"/1.8")
(or copper Ø35/32mm (1.4"/1.3"))
SUCTION LINE PIPE
Plastic pipe Ø50/46mm (2.0"/1.8")
(or copper Ø35/32mm (1.4"/1.3"))
SUCTION
DRAIN
