INSTALLING THE PYLON AND ARMS
60 Planmeca Sovereign
Installation manual

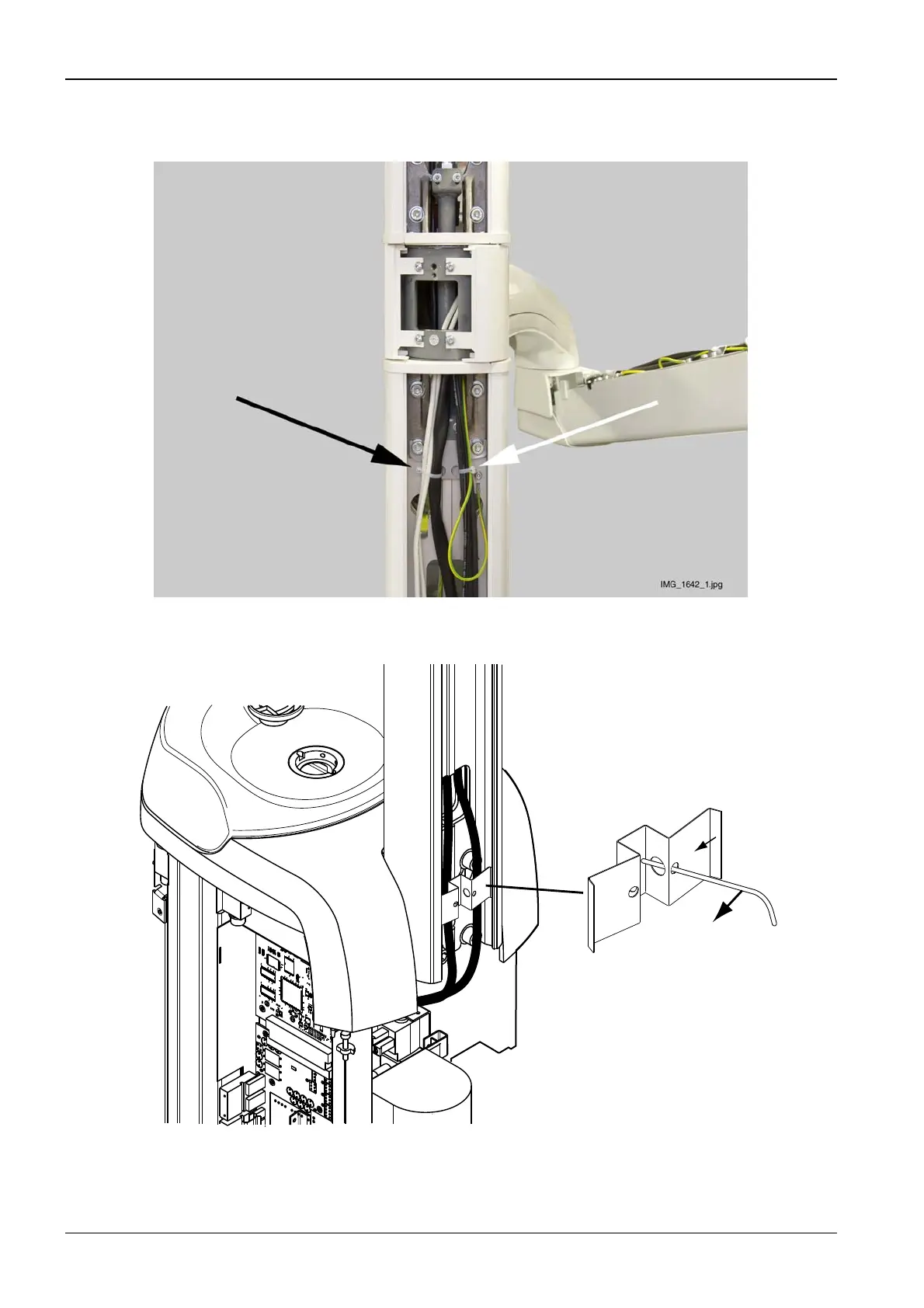

Rotate the OP delivery arm to its extreme position. Lift the OP delivery arm cables slightly
upwards and attach them to the pylon with cable ties (black and white arrow).
Route the arm cables into the cuspidor. Secure the cables with a cable support as follows.
Bend the support lugs inside with e.g. Allen key and press the support to its position.
Connect the arm cables and tubes according to the instructions given in section “Connecting
the OP delivery arm cables and tubes” on page 70.
