INSTALLING THE PYLON AND ARMS
Installation manual
Balanced arm instrument console covers

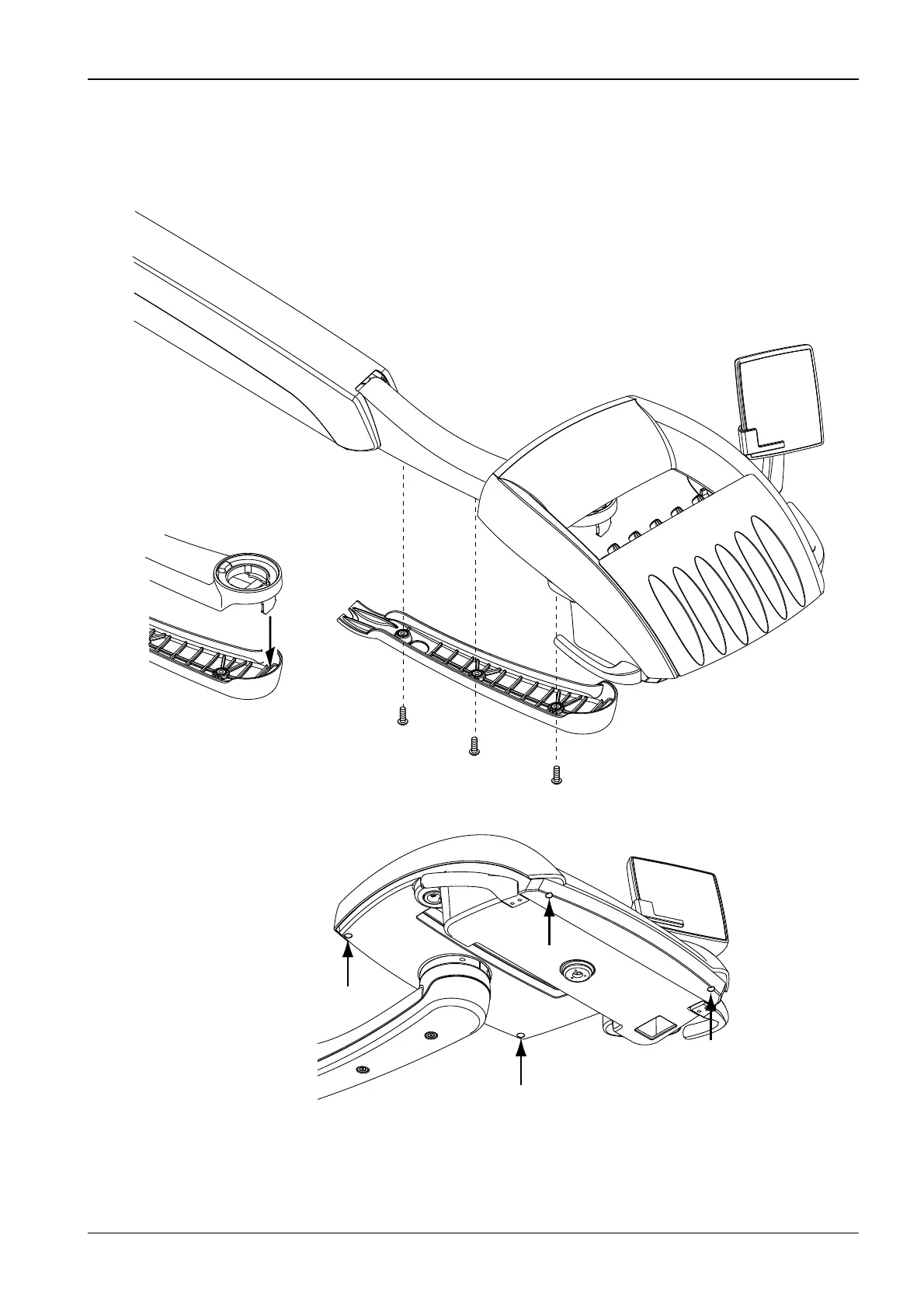

Attach the console bracket lower cover as follows. Place the cover to its position so that the
lug on the arm goes into the cover groove. Attach the arm with three screws using a 3 mm
Allen key.
Attach the instrument console upper cover using a 3 mm Allen key.
S26.eps
S27.eps
