Plockmatic TR5010e - Top Cover

TR-3-2
4 August 2009

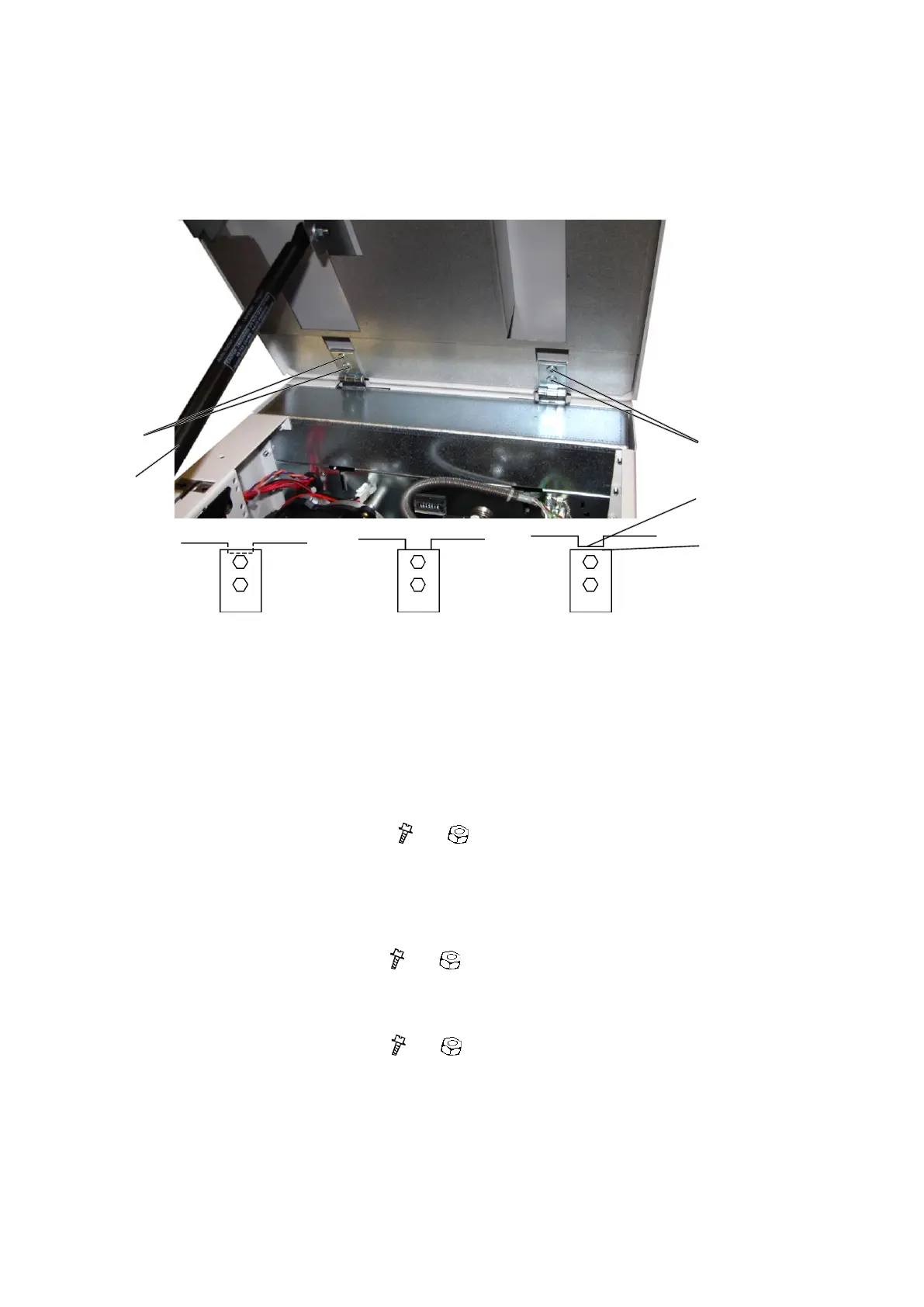

3.1.2 TOP COVER
COVERS
[A]
[B]
[B]
Removal
1. Pry off the Gas spring [A] using a screw driver.
2. Remove screws and nuts [B] (
x4, x4).
Replacement
1. Reverse the removal procedure.
Adjustment
1. Loosen screws and nuts [B] ( x4, x4).
2. Adjust Top cover so frame edge [C] is aligned with top of the hinge [D].
See drawings above.
3. Tighten screws and nuts [C] ( x4, x4).
Bad
Top cover too low
Bad
Top cover too high
Good
[D]
[C]
