3.2.19 KNIFE CHAIN
AREA C
Removal
1. Remove Rear cover (
3.1.1).
2. Remove retaining ring [A].
3. Loosen screws [B] holding the motor (
x3).
4. Remove sprocket [C].
Replacement
1. Ifitisdifculttomountsprocket[C]removemasterlink[E].
2. Reverse the removal procedure.
3. Tension the chain so there is no slack when tightening screws [B] (
x3).

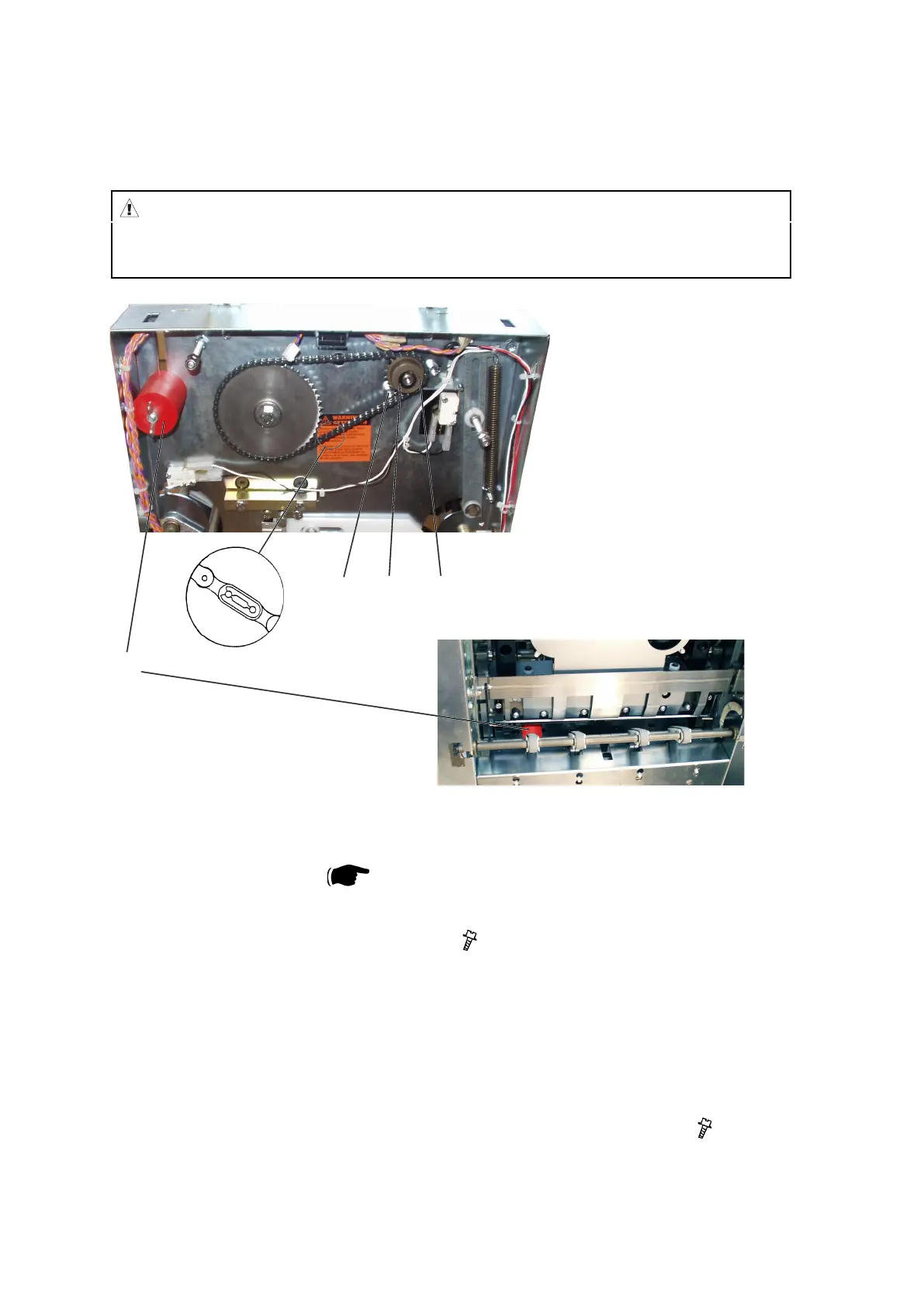

[E]
[B] [A]
[C]
WARNING
Place the safety block [D] between lower knife and upper knife beam. When
removing the chain nothing holds upper knife beam and knife in position.
[D]
