Plockmatic TR5010e - Locking Bracket

Replacement
Adjustment
4 August 2009
TR-3-5
3.1.5 LOCKING BRACKET
COVERS
[A]
[B]

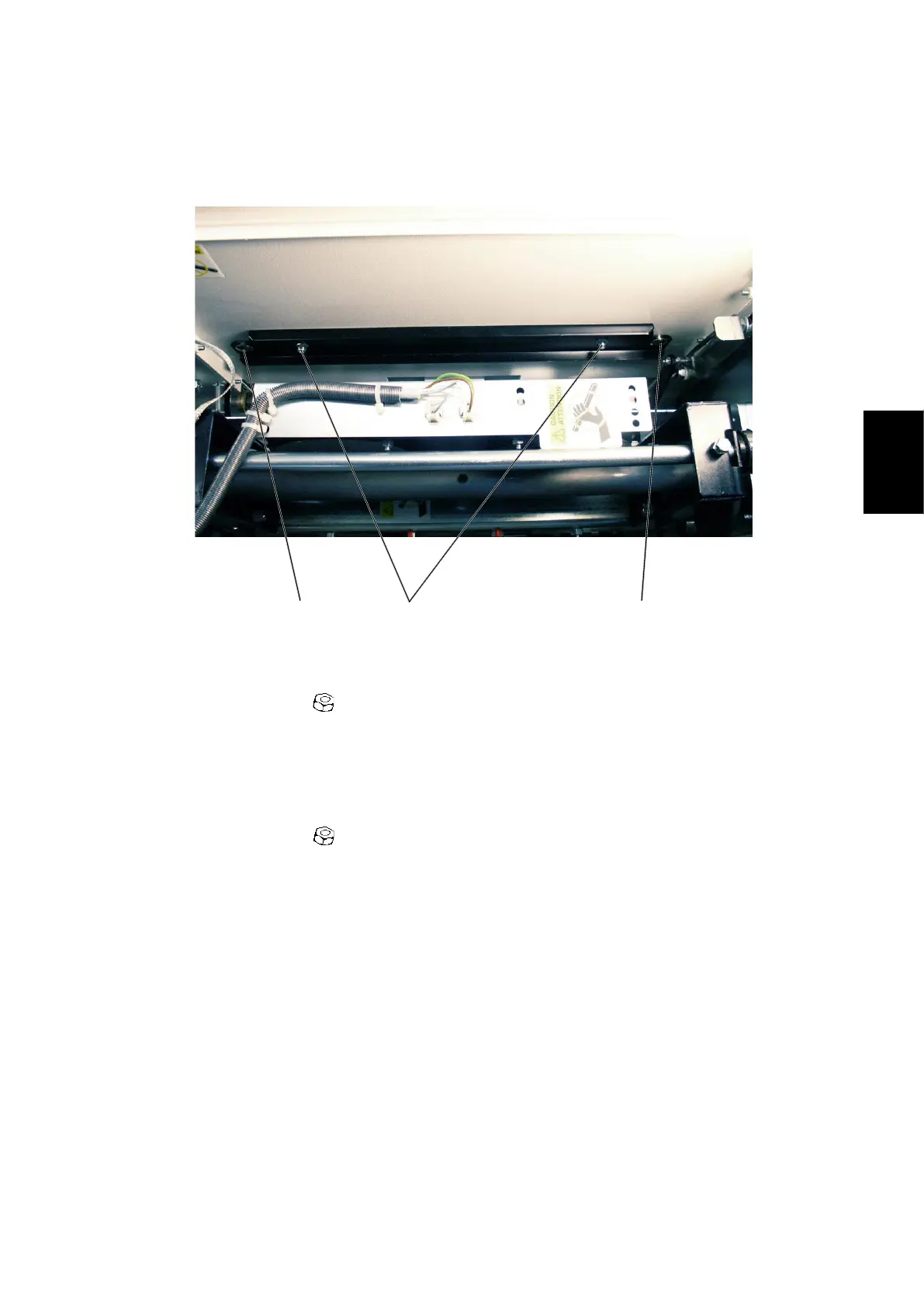

Removal
1. Loosen nuts [A] ( x2).
2. Locking bracket will fall down.
Replacement
1. Push Trimmer against Bookletmaker.
2. Push up Locking bracket so it latches studs [B].
3. Tighten nuts [A] ( x2).
[B]
