Plockmatic TR5010e - Length Adjustment Motor M4 & Sensor Q12

Replacement
Adjustment
4 August 2009
TR-3-27
3.2.12 LENGTH ADJUSTMENT MOTOR M4 & SENSOR Q12
AREA C

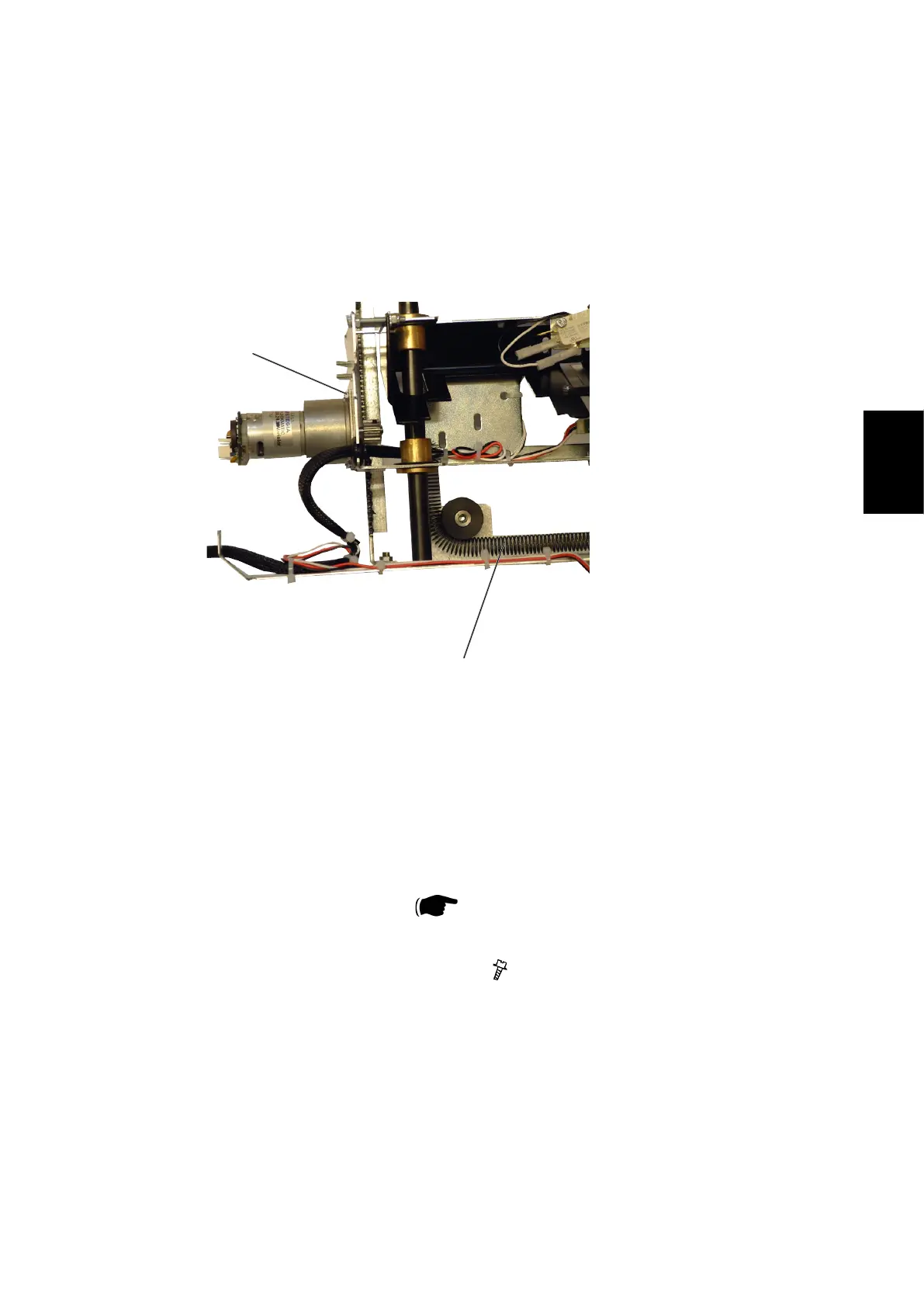

1. Remove Stop gate carriage ( 3.2.10).
2. Unhook spring [A].
3. Remove screws [B] holding the motor (
x4).
[A]
[B]
