3.2.4 TRANSPORT MOTOR M1
AREA C
[A]
[B]

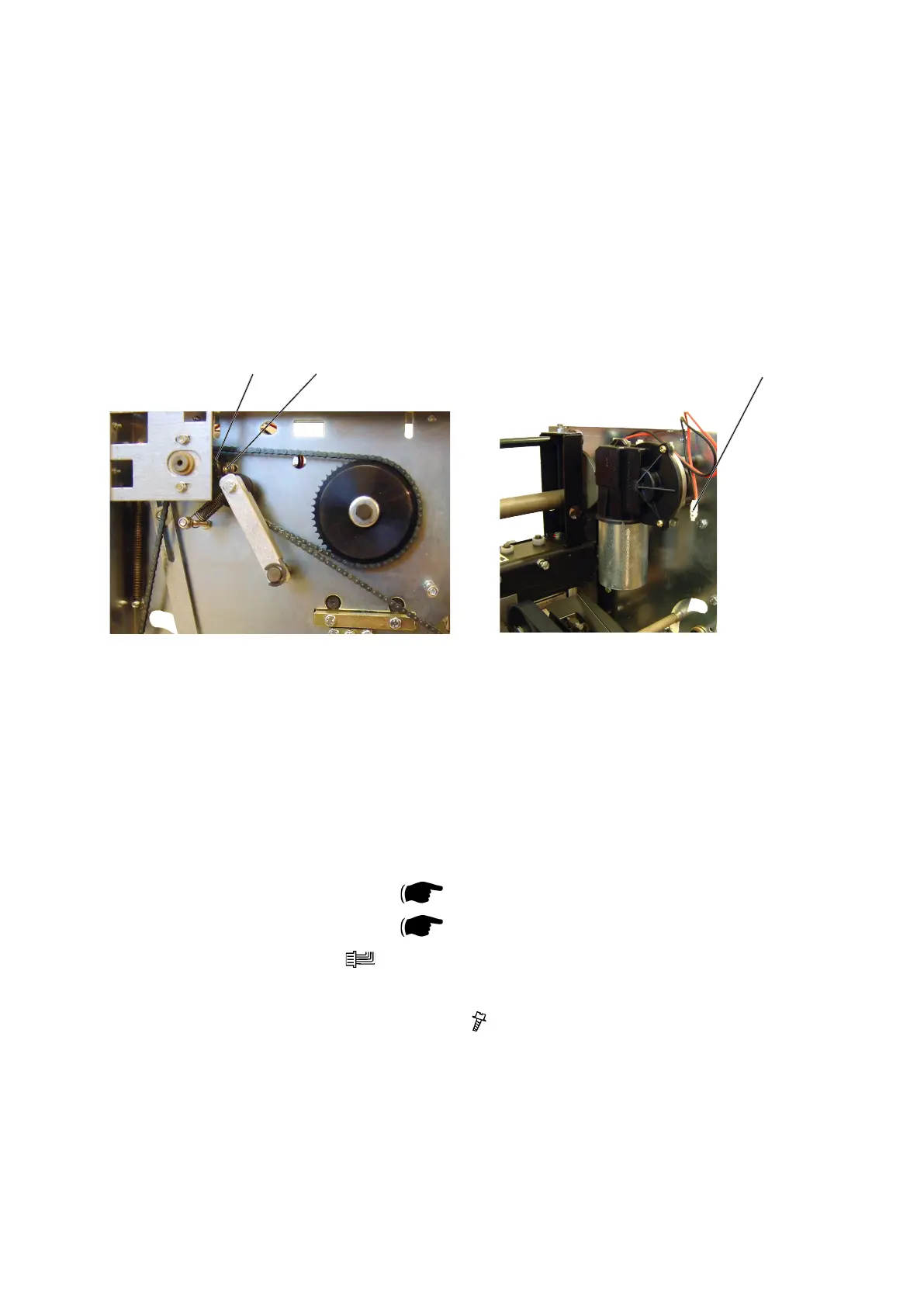

1. Remove Transmission chain ( 3.2.17).
2. Remove Knife support chain (
3.2.18).
3. Remove connector [A] (
x1).
4. Grab the inner sprocket to pull out the whole sprocket assembly [B].
5. Remove screws [C] holding the motor (
x3).
NOTE: Hold the spacers between motor and frame when removing screws.
[C]
