Plockmatic TR5010e - Control Switch S3

Replacement
Adjustment
4 August 2009
TR-3-13
3.2.3 CONTROL SWITCH S3
AREA C

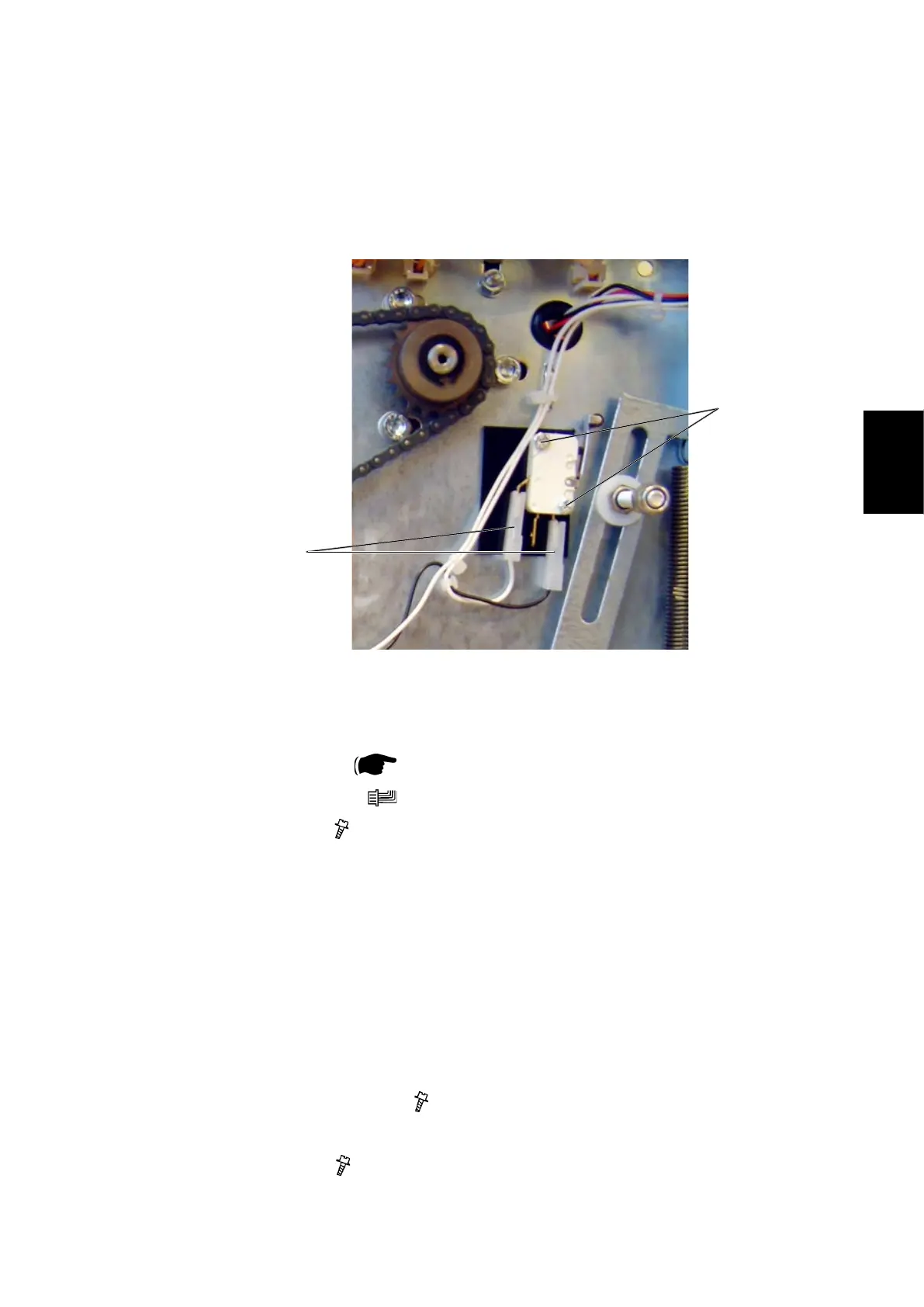

Removal
1. Remove Rear cover (
3.1.1).
2. Remove connector [B] (
X2).
3. Remove screw [A] ( x2).
Replacement
1. Reverse the removal procedure.
Adjustment
1. Lift the compressing bracket.
2. Make sure the Switch activates approximately 10 mm from where the com
-
pressing bracket latches in the upper position.
3. To adjust, loosen screws [A] ( x2 ).
4. Reposition switch to obtain adjustment.
5. Tighten screws [A] (
x2 ).
[A]
[B]
