Plockmatic TR5010e - Protection Cover

Replacement
Adjustment
4 August 2009
TR-3-9

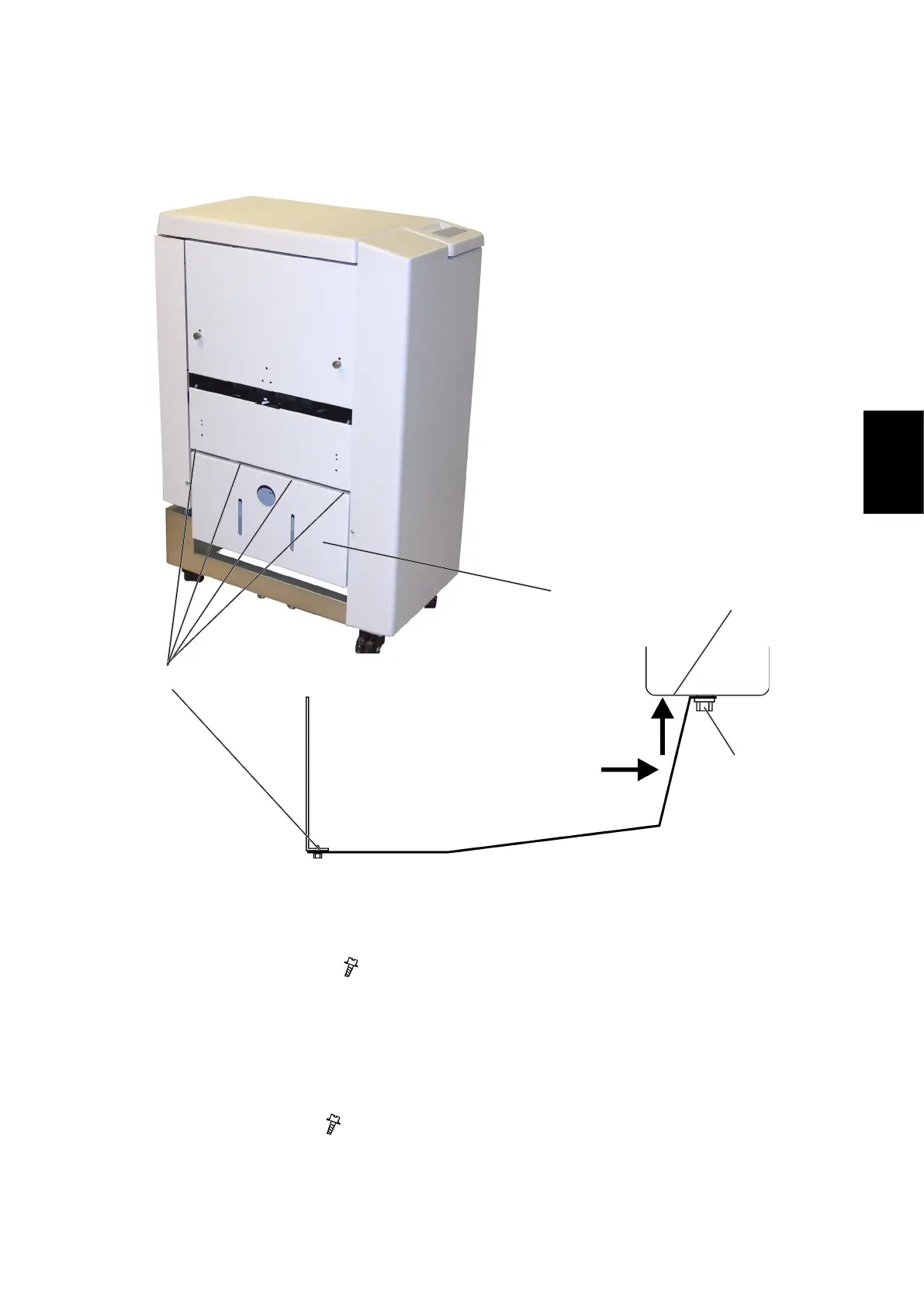

3.1.9 PROTECTION COVER
COVERS
Removal
1. Lift out scrap paper bin [B].
2. Remove screws [A] (
x4).
Replacement
1. Place the front end of the cover up against the lower knife beam [C].
2. Push in cover so it hooks onto the screws [D].
3. Mount screws [A] (
x4).
[A]
[B]
[C]
Replacement Step 1.
[D]
Replacement Step 2.
