3.1.7 INTERLOCK SWITCH S9 &S10

COVERS

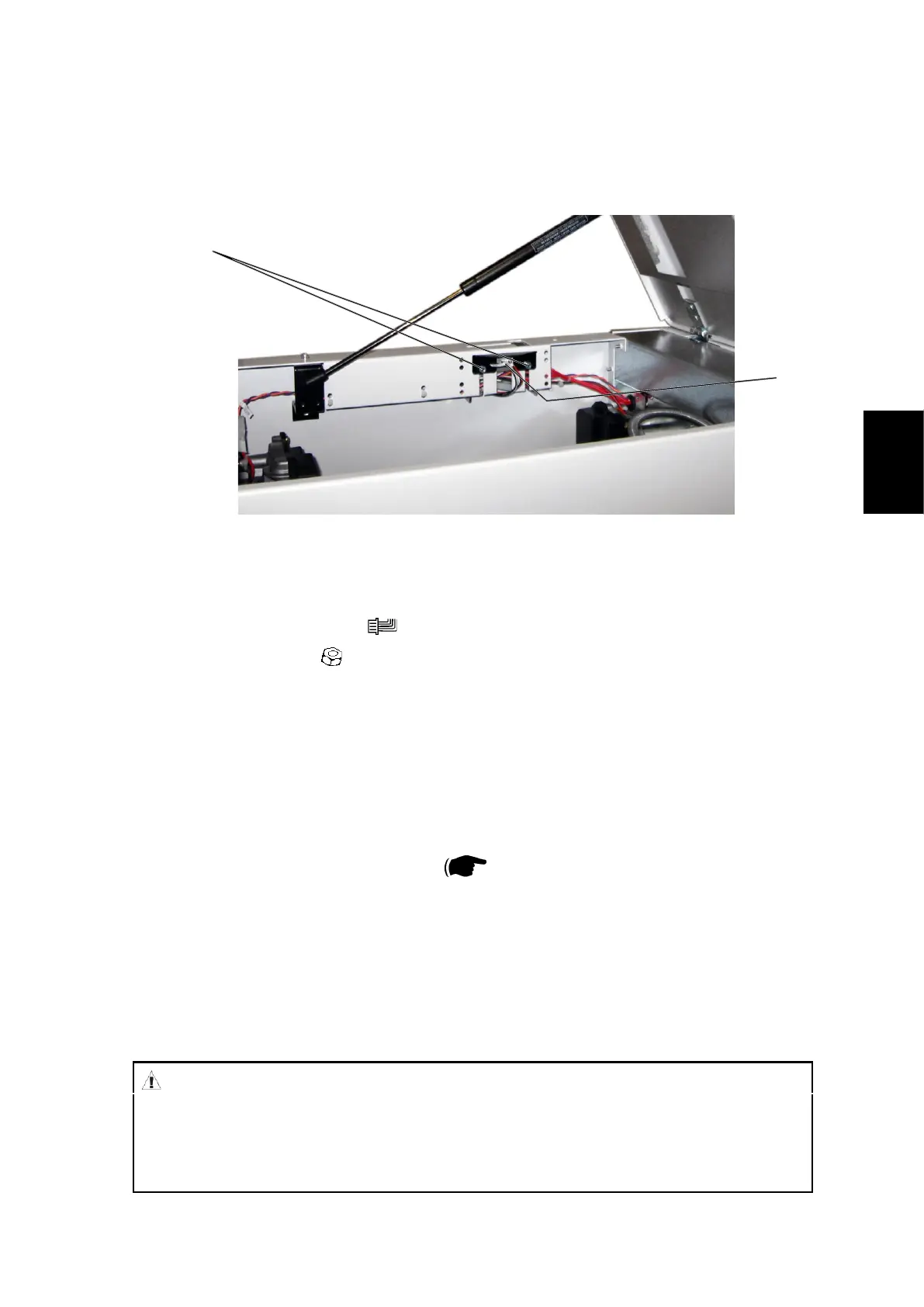

Removal

1. Remove connector [B](

x1).

2. Remove nuts [A] (

x2).

Replacement

1. Reverse the removal procedure.

Note: Mount the interlock box to its uppermost position.

Adjustment

1. Check adjustment according to (

3.1.10).

[A]

[B]

WARNING

Overriding or cheating the interlock allows the TR5010e system to operate

with the top cover open which can result in personal injury. Never give the

operator access to the cheater or show how ovverriding the interlock sys-

tem is carried out.
