Plockmatic TR5010e - Interlock Mechanism

To Next Page

To Previous Page

TR-3-10

4 August 2009

COVERS

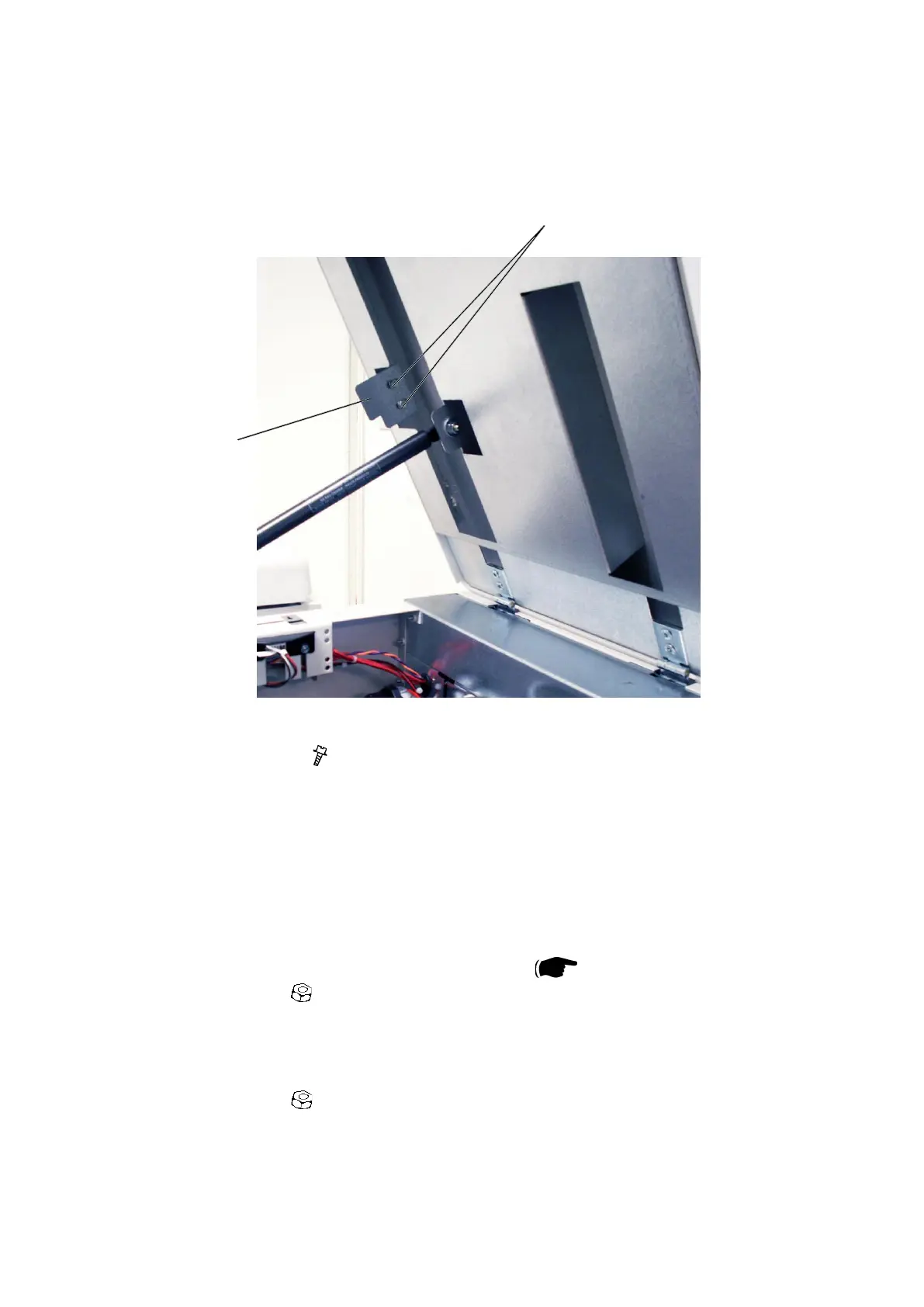

3.1.10 INTERLOCK MECHANISM

Removal

1. Remove screws [A] (

x 2).

2. Remove interlock mechanism bracket [B].

Replacement

1. Reverse the removal procedure.

Adjustment

1. Make sure interlock box is mounted correctly (

3.1.7).

2. Loosen nuts [A] (

x2).

3. Adjust the interlock mechanism [B] so that it is parallel to the Top cover and so

that the interlock switch is actuated 2 mm before Top cover is closed measu-

red on front side beneath handle.

4. Tighten nuts [A] (

x2).

[A]

[B]
