Replacement
Adjustment
4 August 2009
TR-3-29

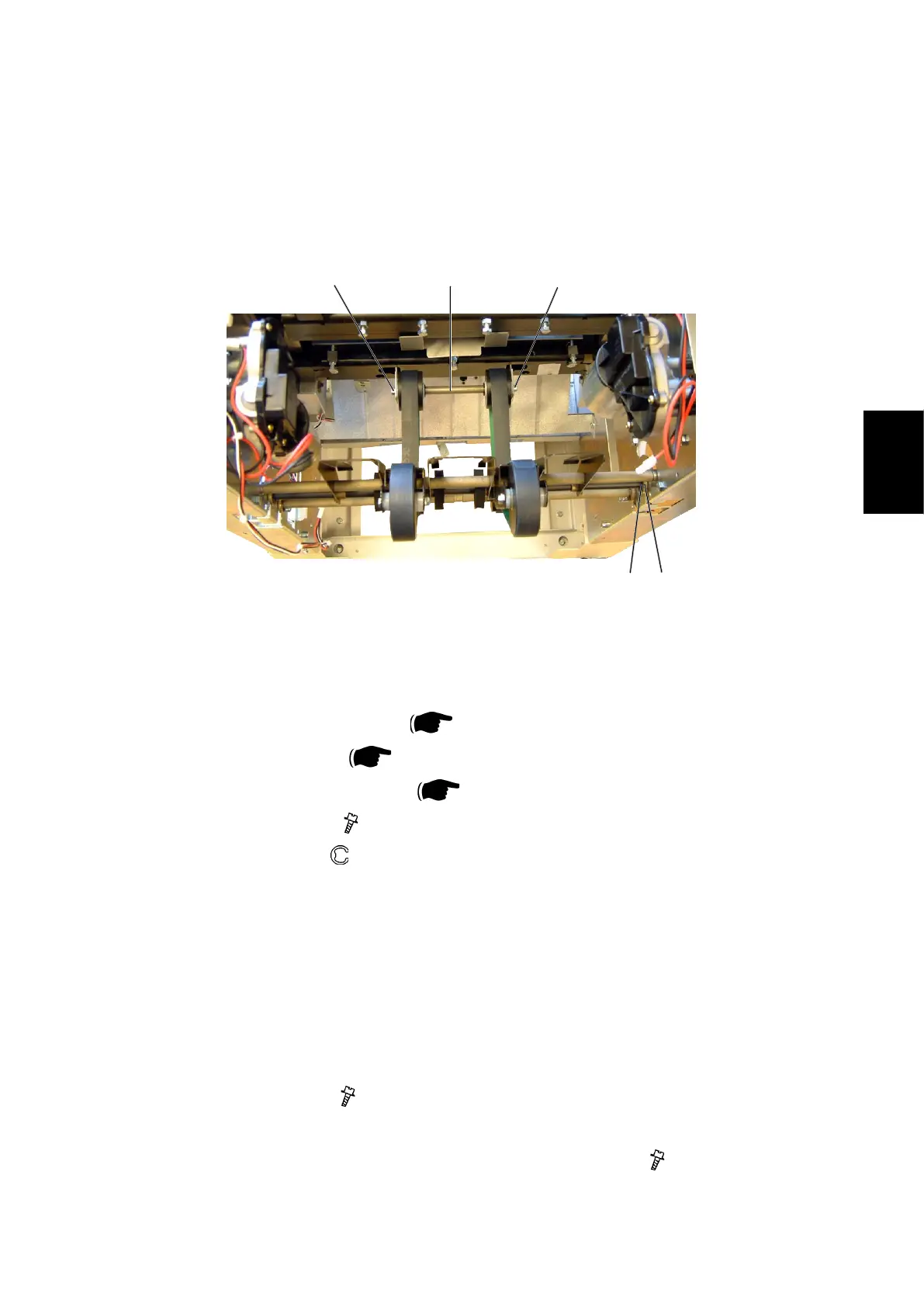

3.2.14 LOWER OUTFEED BELTS
AREA C
Removal
1. Remove Stop gate carriage (
3.2.10).
2. Remove Paper path (
3.2.9).
3. Remove Transmission chain (
3.2.17).
4. Remove screws [A] ( x2).
5. Remove e-clip [B] (
x1).
6. Slide Flange bushing [C] towards the center of the shaft and tilt the shaft out
through the cut-out in the side frame.
Replacement
1. Reverse the removal procedure.
Adjustment
1. Loosen screws [A] ( x2).
2. The belts should be adjusted so they have no slack and even tension.
3. Pull shaft [D] to obtain adjustment and tighten screws [B] (
x2).
[A]
[B]
[A]
[C]
[D]
