Plockmatic TR5010e - Area C Component Procedures

Replacement
Adjustment
4 August 2009
TR-3-11
3.2 AREA C
3.2.1 INFEED SENSOR Q13
AREA C

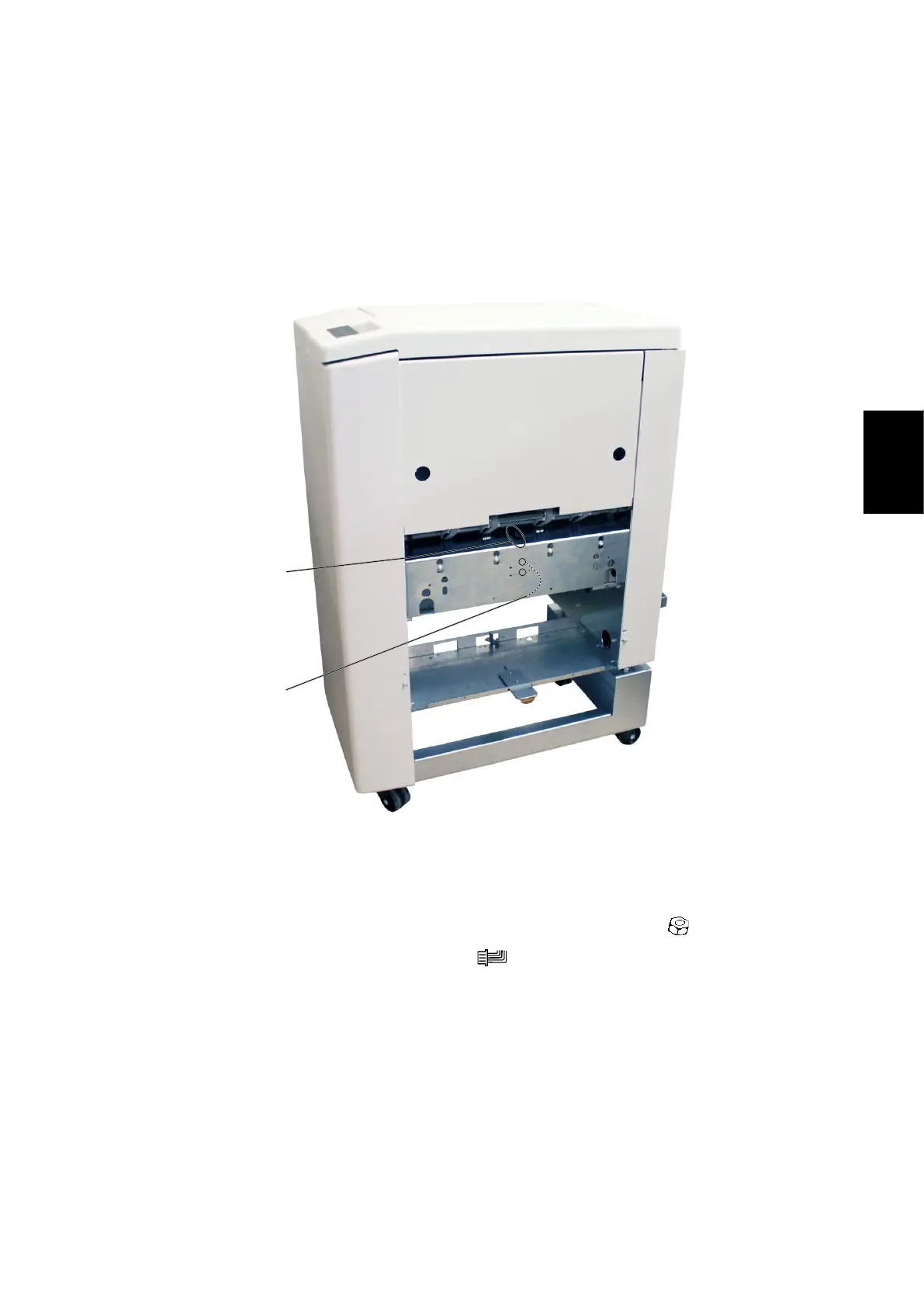

1. Undock the Trimmer.
2. Remove nuts [A] inside bracket holding the Sensor bracket (
x2).
3. Remove connector from the Sensor (
x1).
4. Remove sensor [B].
[A]
[B]
