TR-3-18
4 August 2009

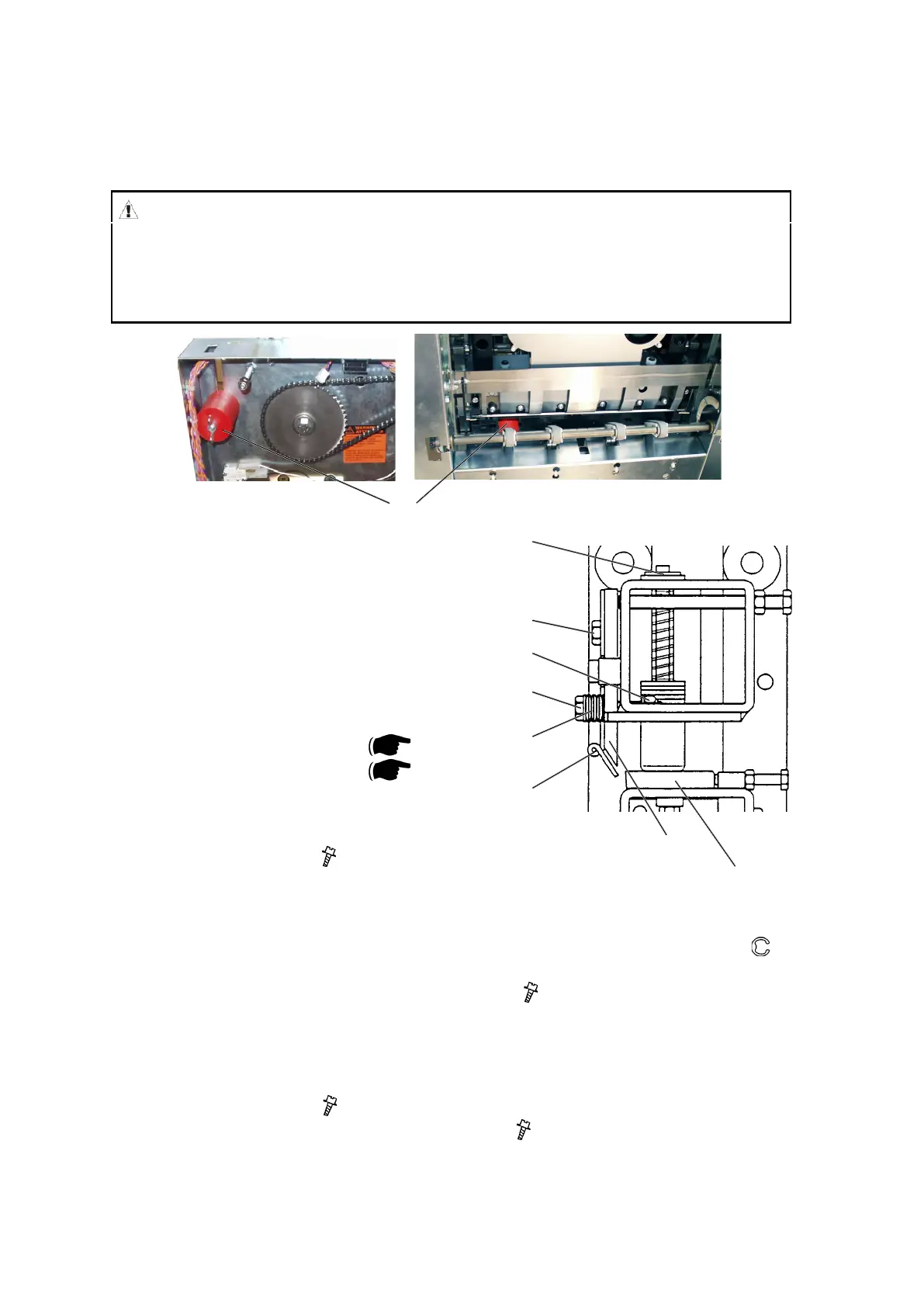

3.2.8 TRIM KNIFE
AREA C
WARNING
Stay clear from upper knife. The knife edge may cause serious injuries.
Place the safety block [A] between lower knife and upper knife beam. Keep
the safety block in that position as much time as possible throughout this
procedure.
[A]
Removal
1. Remove the belt stacker.
2. Undock the Trimmer.
3. Latch the compressing bracket in upper position.
4. Remove the infeed cover (
3.1.4).
5. Remove protection cover (
3.1.9).
Removal Upper knife
1. Remove screws [B] (
x3).
2. Remove knife protection plate [C].
3. Move transport protection from the new to the old knife or use the transport
protection attached behind the front cover.
4. Remove the e-clip [D] from the middle plunger, to release the Set clamp (
x1).
5. Remove screws [E] and cup spring washers (
x6).
Note: When removing screws [E] the nuts [G] will fall down through the cut-out
in bottom of knife beam.
Removal Lower knife
1. Remove screws [H] (
x4).
2. Remove screws [I] and cup spring washers (
x2).
[C]
[E]
[F]
[D]
[G]
Lower knife
[B]
Upper knife
