Replacement
Adjustment
4 August 2009
TR-3-19

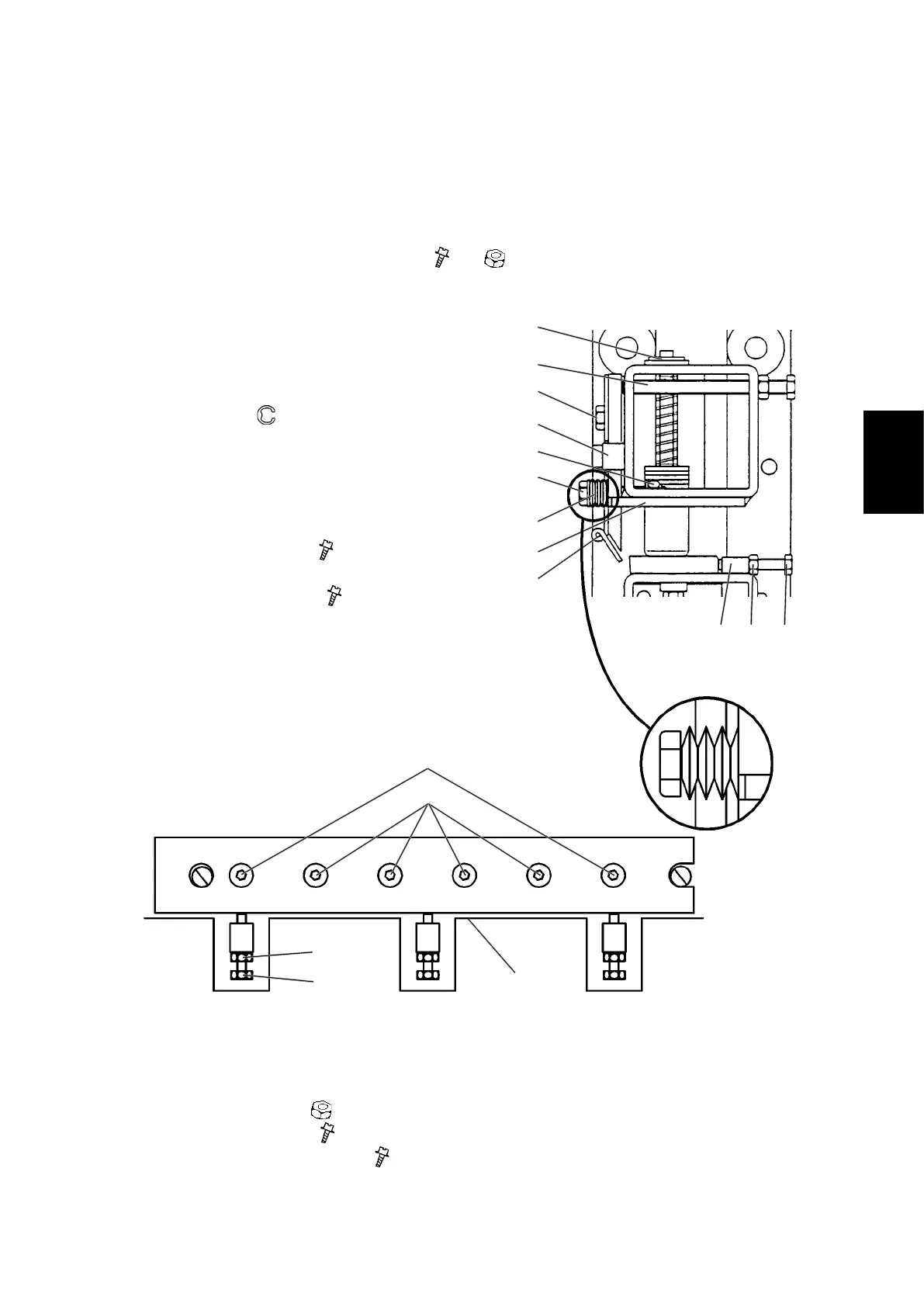

Replacement Upper knife
1. Move transport protection from the old to the new knife.
2. Clean and apply grease on guide bars [J] and side guides [K].
3. Fit upper knife onto guide bars [J].
Apply grease on the cup spring washers [F] closest to the knife.
Mount screws [E] with nuts [G] ( x6, x6).
Note: Make sure each screw has 7 cup spring washers placed accord-
ingtogure.
4. Remove transport protection and mount
it on the old knife.
5. Mount knife protection plate [C].
6. Mount the set clamp in position with
e-clip [D] ( x1) .
Replacement Lower knife
1. Place the lower knife onto the lower knife
beam.
2. Apply grease on both washers.
3. Mount screws [I] (
x2) and cup spring
washers.
4. Mount screws [H] (
x4).
[K]
[J]
[O]
[N]
[L]
[H]
[M]
[L]
[N]
[I]
[E]
[F]
[B]
[D]
[G]
[C]
[M]
Adjustment
1. Turn screws [E] so there is no tension and no play between cup spring wash-
ers and upper knife.
2. Then turn screws [E] one revolution clockwise each.
3. Loosen nuts [L] ( x3)
4. Turn screws [M] (
x3) counter clockwise until they passes edge [N].
5. Loosen screws [I] & [H] (
x6).
6. Push the Lower knife against the bracket [N].
1
2435 6
AREA C
