TR-3-20
4 August 2009

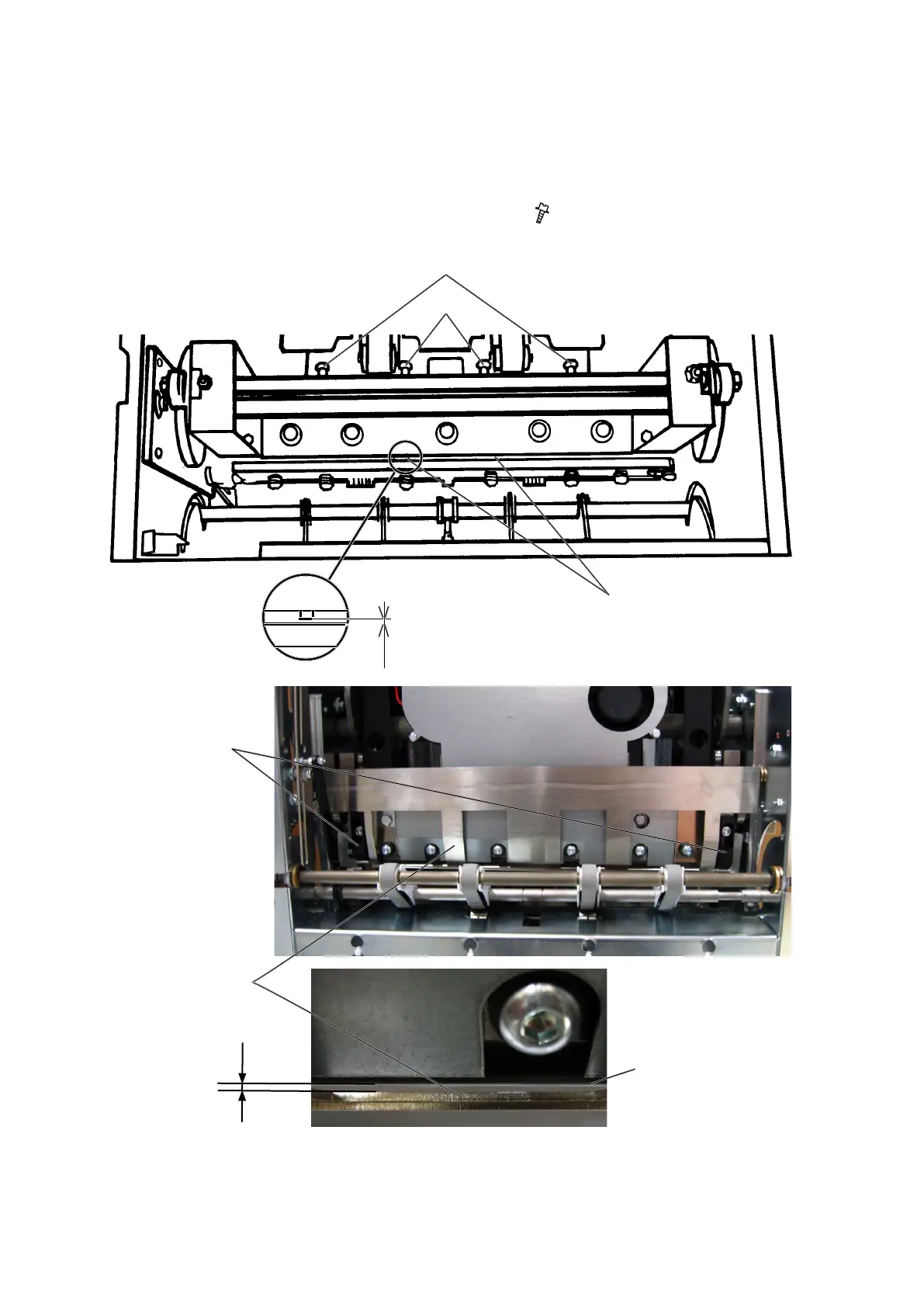

7. Use a feeler gauge and check that the space [Q] between upper knife and the
two red marked reference screws in the middle [P] is 0.50 mm.
Note: Never touch the red painted reference screws [P].
8. Adjust the space if necessary with screws [O] (
x2).
[O]
[Q]
0.50 mm
[P]
AREA C
9. Check that there is a gap of 1 - 2 mm between the knife protection plate [S]
and the edge of the upper knife. If not, adjust by moving the knife protection
guides [T]. Start by adjusting the front side guide (spring loaded).
[S]
[T]
Upper knife
1 - 2 mm
