Plockmatic TR5010e - Blower Motor M5; M6

Replacement
Adjustment
4 August 2009
TR-3-3
3.1.3 BLOWER MOTOR M5 / M6
COVERS
Removal
1. Open the Top Cover.
2. Cut tie-wrap [A]
2. Disconnect connectors [B] (
x2).
3. Remove Front and Rear cover (
3.1.1).
4. Remove Infeed cover (
3.1.4).
5. Remove screws [C] ( x2).

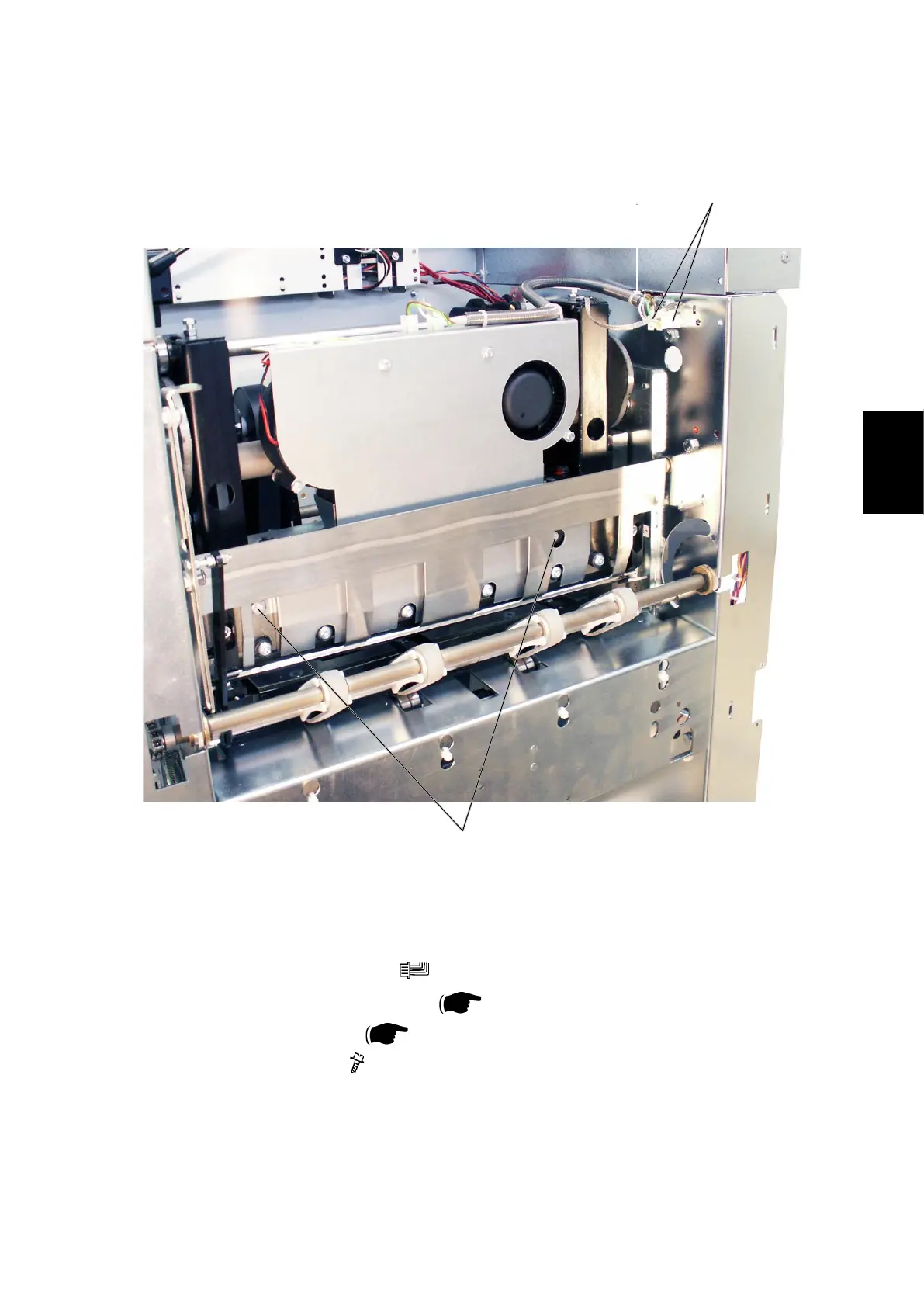

6. Lift out Fan assy
Replacement
1. Reverse the removal procedure.
[B][A]
[C]
