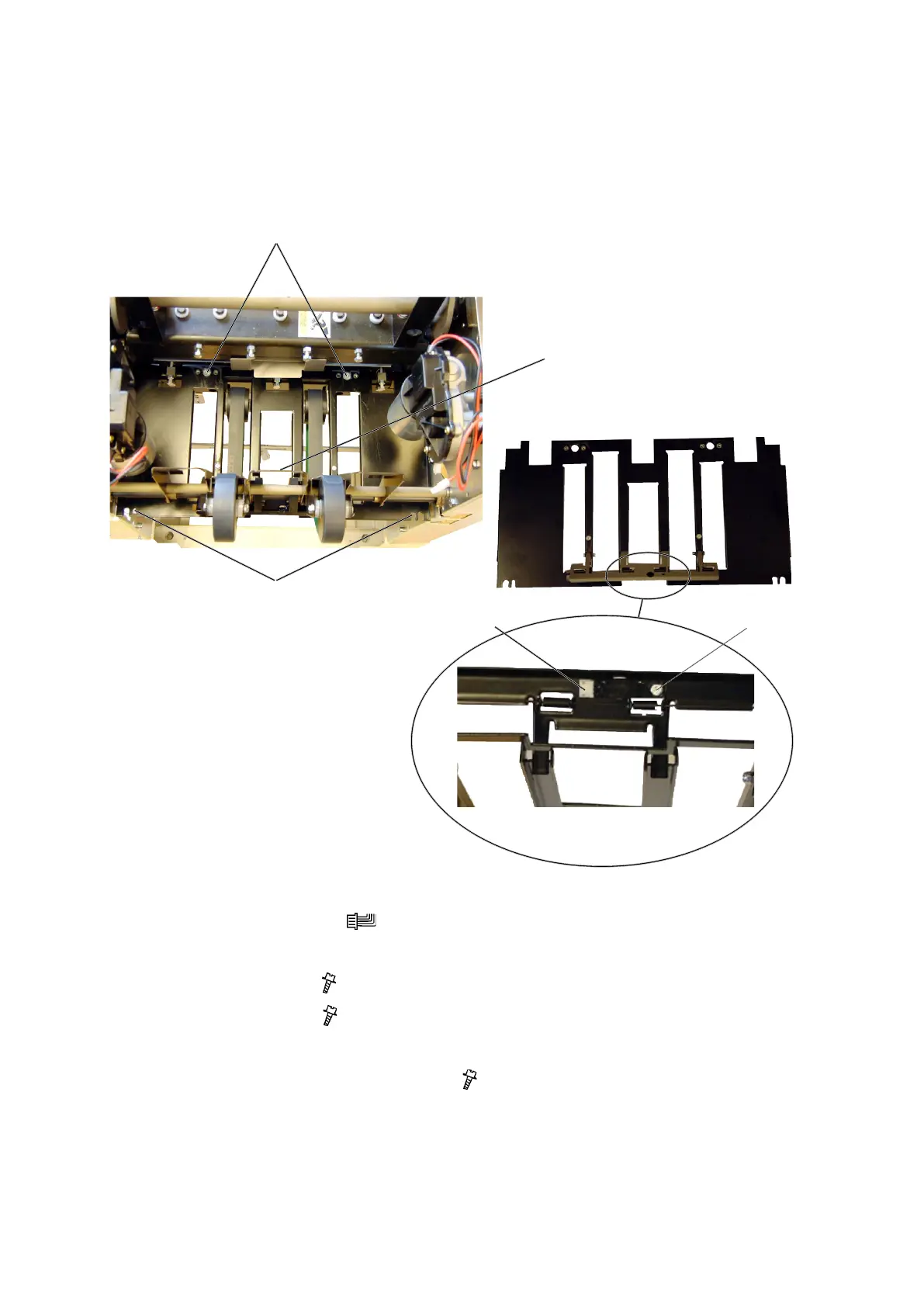

3.2.9 PAPER PATH & OUTFEED SENSOR Q6
AREA C
1. Remove connector [D] ( x1).
2. Lift up and latch compressing bracket [B].
3. Remove screws [A] (
x2).
4. Remove screws [C] ( x2).
5. Pull Paper path out through the outfeed.
6. To remove sensor, remove screw [E] (
x1).
[A]
[C]
[B]
[D]
[E]
