Plockmatic TR5010e - Lower Outfeed Cover

TR-3-8
4 August 2009
3.1.8 LOWER OUTFEED COVER
COVERS
1. Remove Belt stacker ( 3.8.1).
2. Remove Front and Rear cover (
3.1.1).
3. Remove Protection Cover (
3.1.9).

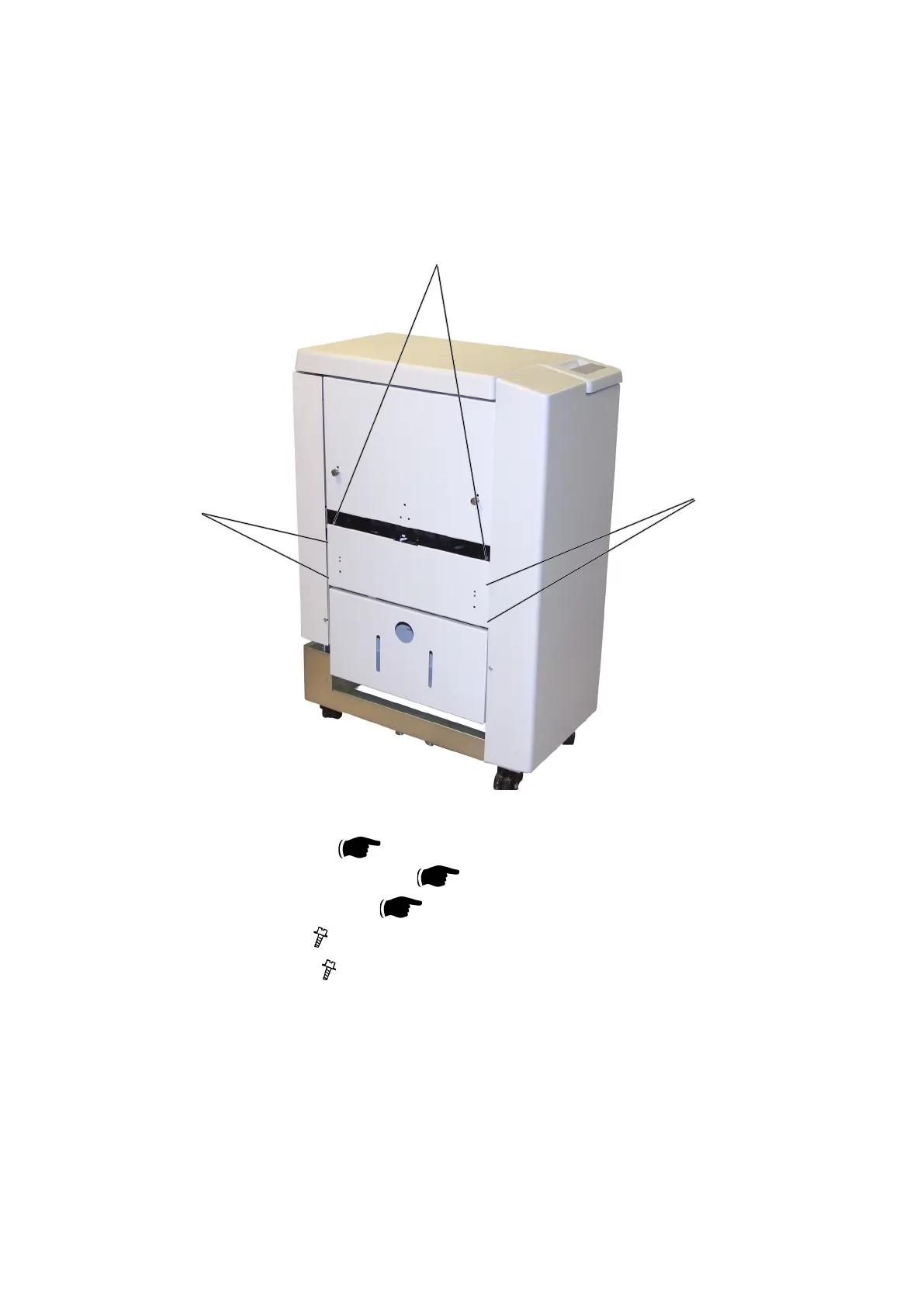

4. Loosen screws [A] ( x2).
5. Remove screws [B] ( x4).
[B]
[A]
[B]
