5
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
5.7
PVT SYSTEM SERVICE

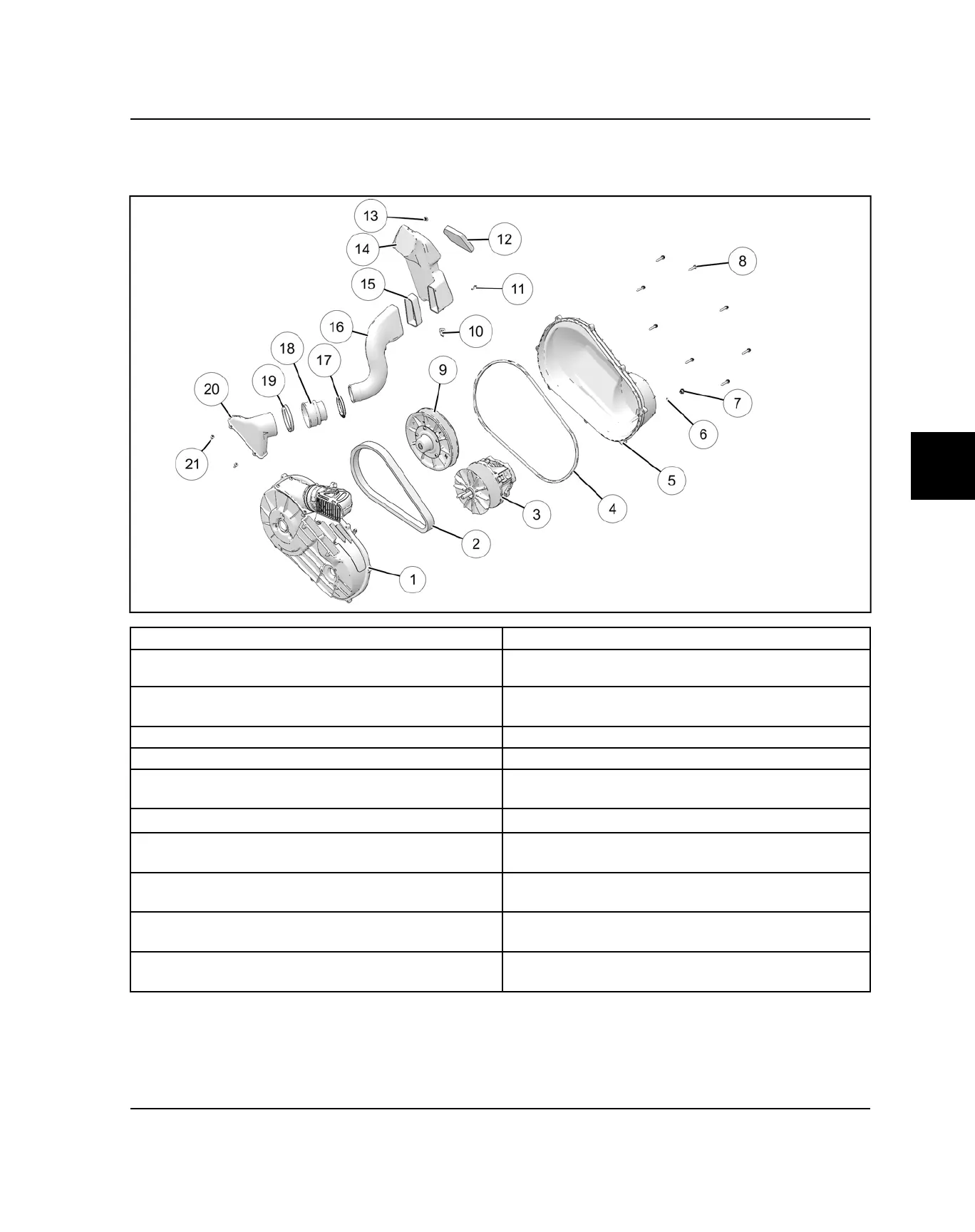

PVT SYSTEM ASSEMBLY VIEW
q
Inner Clutch Cover
d
Filter
w
Drive Belt
Install so POLARIS can be read from outside of vehicle.
f
Clip
e
Drive Clutch Assembly
Drive Clutch Bolt: 96 ft-lbs (130 Nm)
g
Intake Box
r
Outer Cover Seal
h
Foam Seal
t
Outer Cover
j
Air Intake Duct
y
O-Ring
k
Gear Clamp
24 in-lbs (3 Nm)
u
Drain Plug
l
Intake Boot
i
Screws
2 ft-lbs (3 Nm)
1(
Gear Clamp
24 in-lbs (3 Nm)
o
Driven Clutch Assembly
Driven Clutch Bolt: 43 ft-lbs (58 Nm)
2)
Air In Duct
a
Drain
2!
Screws
6 in-lbs (0.7 Nm)
s
Screws
8 ft-lb (11 Nm)
PVT SYSTEM
