9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
10.25

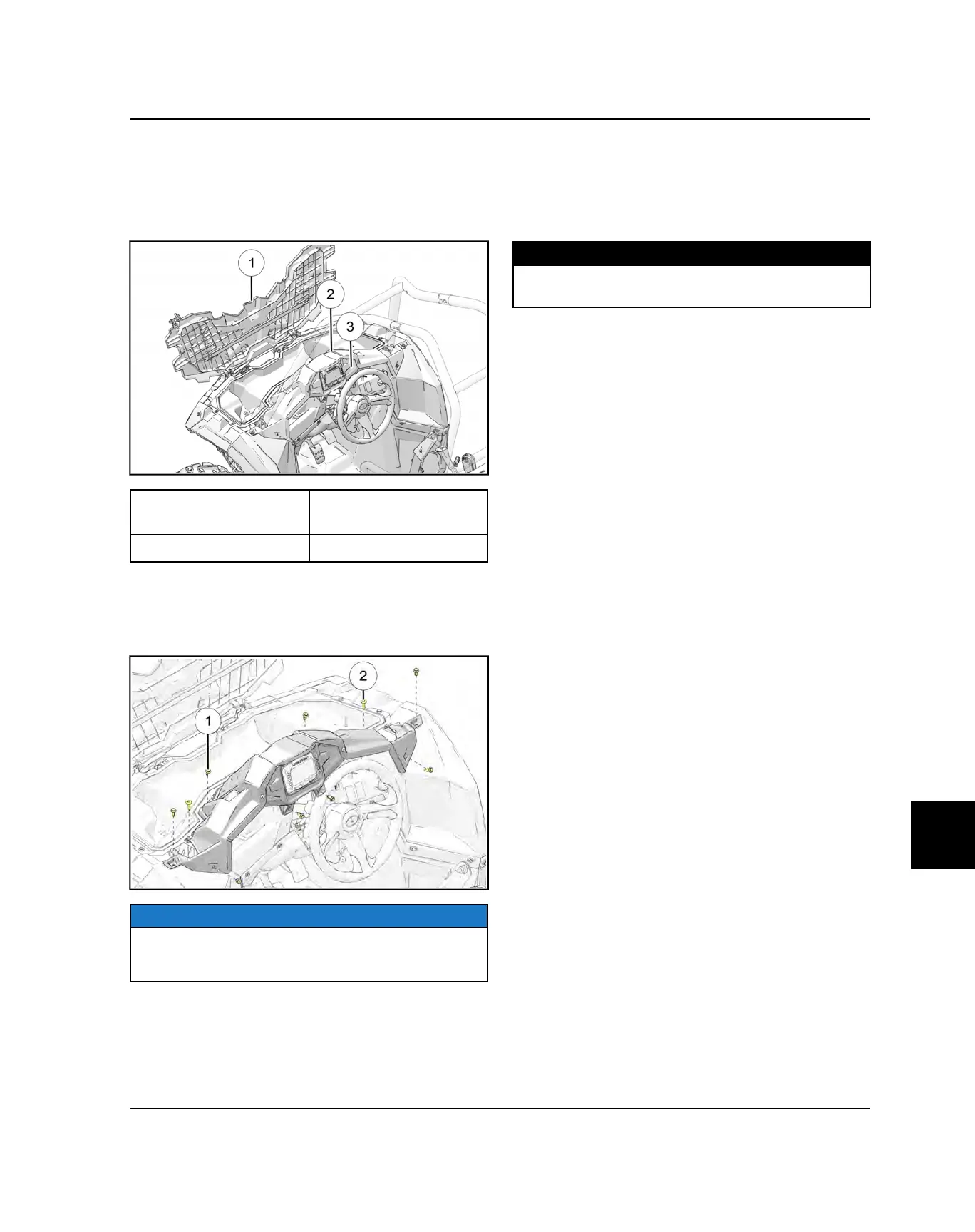

INSTRUMENT CLUSTER POD
INSTRUMENT CLUSTER POD REMOVAL /
INSTALLATION
Removal Procedure
q
Front Storage
Compartment Door
e
Instrument Cluster
Bezel
w
Instrument Cluster Pod
1. Open the front storage compartment door to access
the plastic rivets and screws.
2. Remove the plastic rivets
q
and screws
w
that
mount the instrument cluster pod to the front cab.
NOTICE
The instrument cluster bezel does not need to be
removed to remove the instrument cluster pod from the
front cab.
3. Disconnect the instrument cluster wiring harness.
Installation Procedure
1. Secure the instrument cluster pod onto the front cab.
Install plastic rivets and screws. Connect instrument
cluster wiring harness connector during assembly.
Torque screws to specification.
TORQUE
Instrument Cluster Pod Screws:
8 ft-lbs (11 Nm)
BODY / FRAME
