9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
10.27

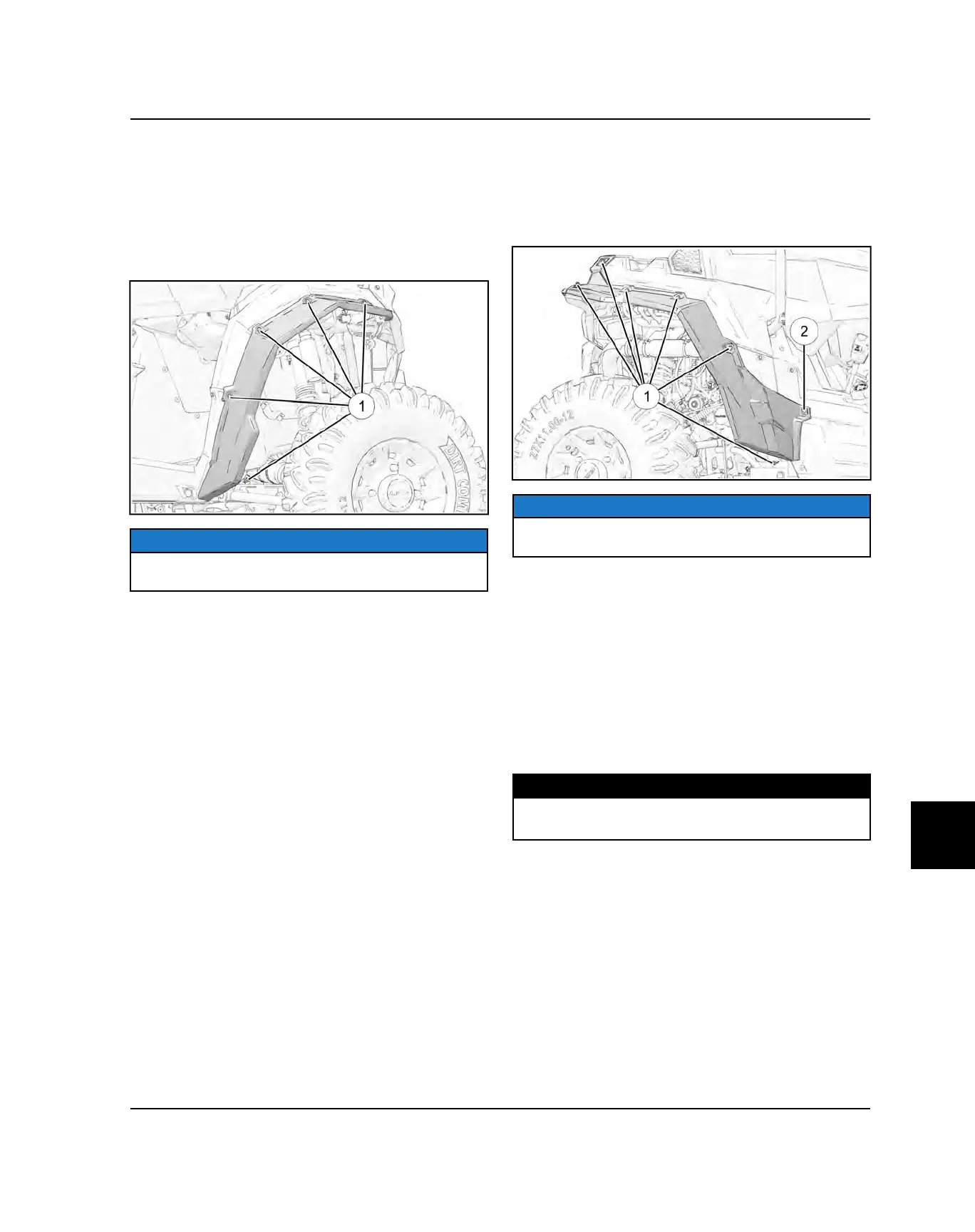

FENDER FLARES
FRONT FENDER FLARE REMOVAL /
INSTALLATION
Removal Procedure
1. Remove the plastic rivets
q
retaining the fender flare
to the front cab.
NOTE
One of the plastic rivets is located in the front wheel
well.
2. Remove the fender flare from the vehicle.
Installation Procedure
1. Reinstall the fender flare onto the vehicle.
2. Install the plastic rivets that attach the fender flare to
the front cab.
REAR FENDER FLARE REMOVAL /
INSTALLATION
Removal Procedure
1. Remove the plastic rivets
q
retaining the fender flare
to the fender, bumper, and frame.
NOTE
One of the plastic rivets is located in the rear wheel
well.
2. Remove the fastener
w
retaining the fender flare to
the rocker panel.
3. Remove the fender flare from the vehicle.
Installation Procedure
1. Reinstall the fender flare onto the vehicle.
2. Install the plastic rivets that attach the fender flare to
the fender, bumper, and frame.
3. Install the fastener that secures the fender flare to the
rocker panel.
TORQUE
Fender Flare Screw:
8 ft-lbs (11 Nm)
BODY / FRAME
