9.20
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.

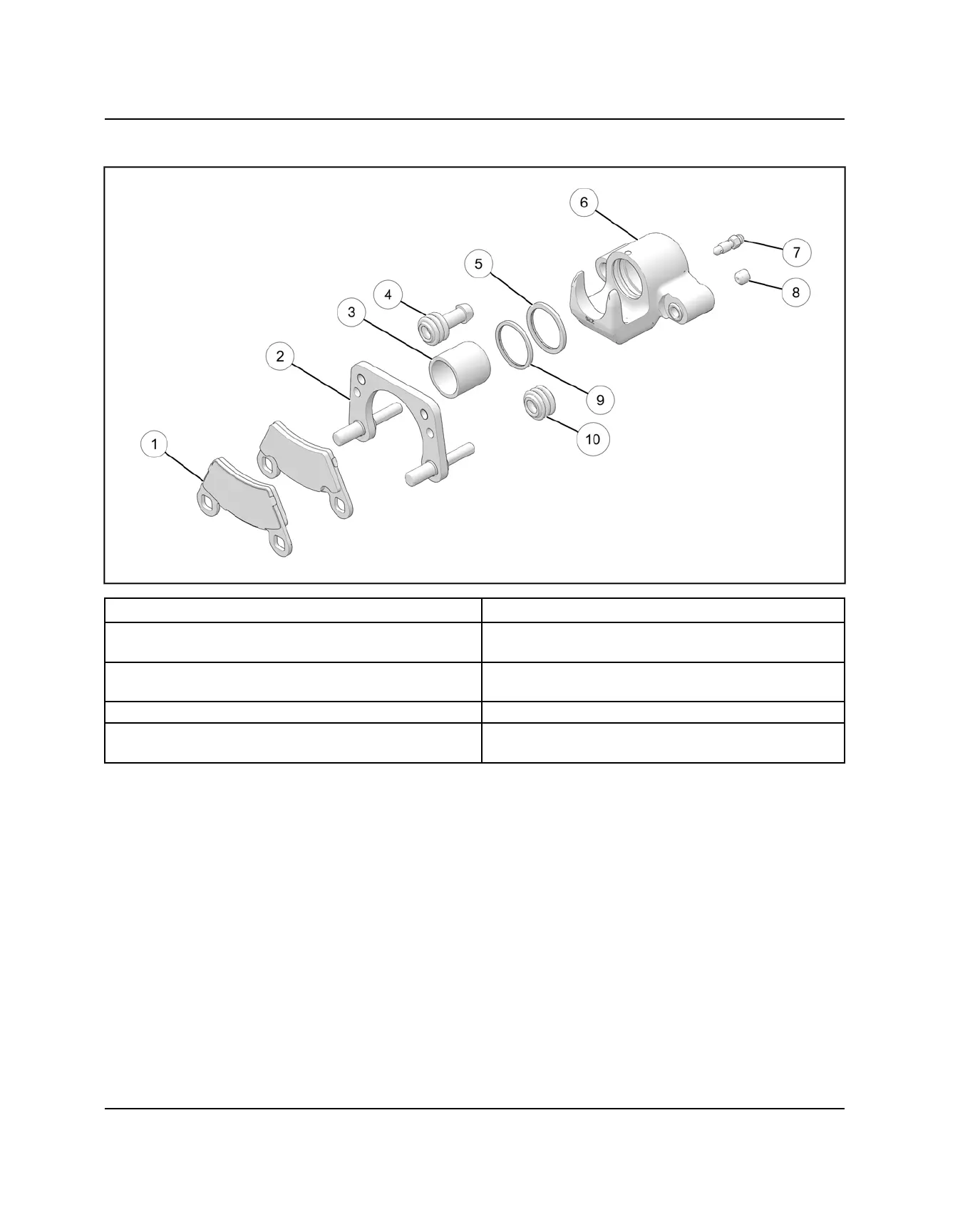

CALIPER EXPLODED VIEW
q
Brake Pads
y
Caliper Body
w
Caliper Mount
Apply Silicone Grease to Pins.
u
Bleeder Screw
44 in-lbs (5 Nm)
e
Piston
Apply DOT 4 Brake Fluid
i
Adjuster Screw
r
Pin/Boot
o
Seal Boot
t
Inner Seal- 1.25
Replace with new parts. Apply DOT 4 Brake Fluid.
a
Outer Seal- 1.25
Replace with new parts. Apply DOT 4 Brake Fluid.
BRAKE SYSTEM
