8.28
9929422 R02 - 2017-2019 ACE 900 Service Manual
© Copyright Polaris Industries Inc.
REAR SUSPENSION

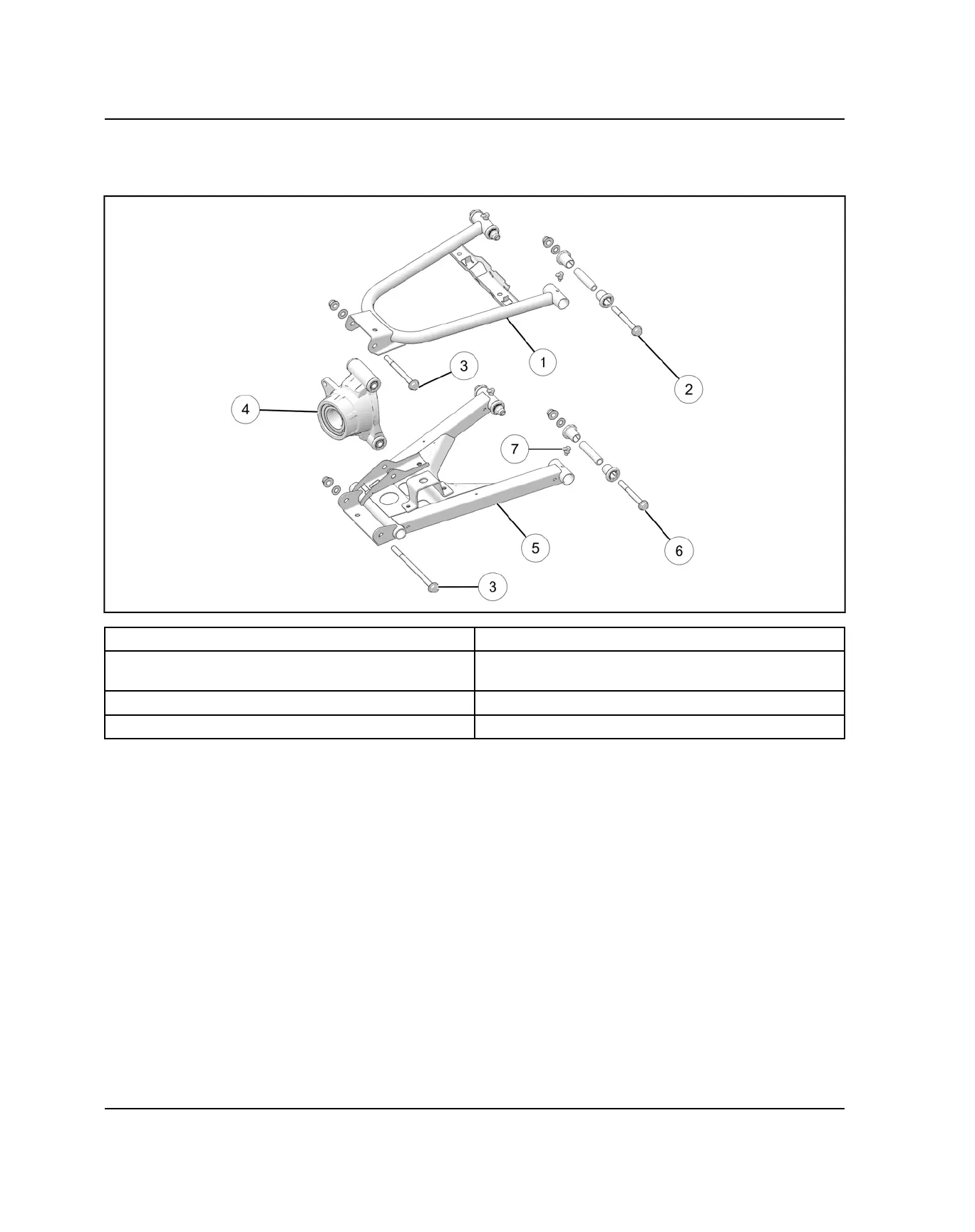

REAR SUSPENSION ASSEMBLY VIEW
q
Upper Control Arm
t
Lower Control Arm
w
Upper Control Arm Mounting Fastener
42 ft-lbs (57 Nm) Replace with new when removed.
y
Lower Control Arm Mounting Fastener
42 ft-lbs (57 Nm) Replace with new when removed.
e
Bearing Carrier Fasteners
u
Lubrication Fitting
r
Bearing Carrier
STEERING / SUSPENSION
