3
9929375 R02 - 2016-2019 GENERAL / GENERAL 4 Service Manual
© Copyright Polaris Industries Inc.
3.87

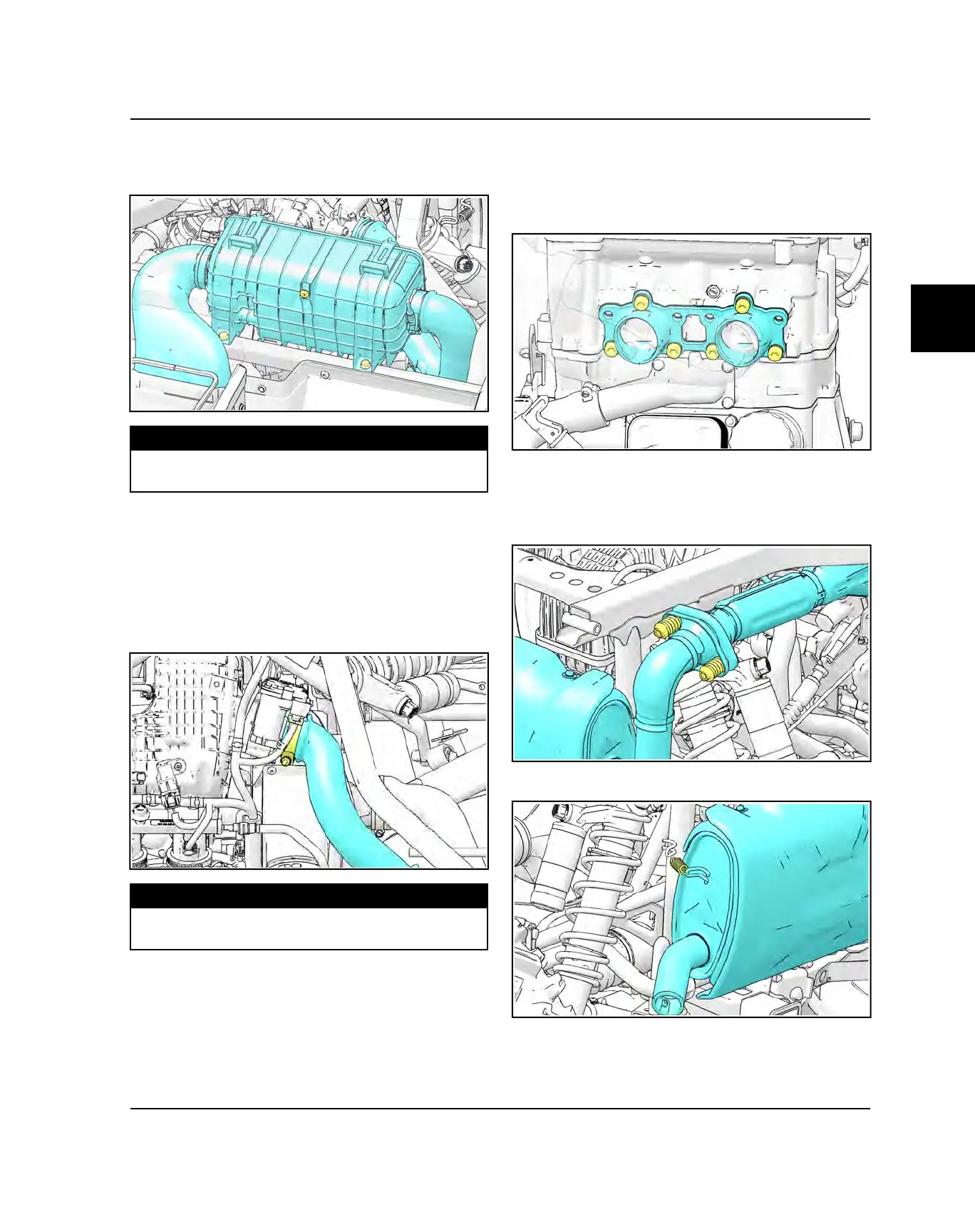

7. Install the fasteners holding the air box assembly to
the rear upper close-off panel and the frame of the
vehicle. Torque the fasteners to specification.
TORQUE
Air Box Fasteners:
3.5 lb-ft (4.7 Nm)
8. Install the clamp holding the engine crankcase
breather hose to the engine. Refer to “Engine
Crankcase Breather Hose Inspection”page 3.21
procedure.
9. Remove clean cloth in Electronic Throttle Control
(ETC) inlet preventing anything from entering engine.
Install the clamp holding the engine intake hose to the
ETC. Torque to specification.
TORQUE
Engine Intake Hose Clamp:
49 lb-in (5.5 Nm)
10.Lower the cargo box and secure in position.
EXHAUST REMOVAL
1. Pull the cargo box handle and lift out of the way.
2. Remove the fasteners holding the headpipe
assembly to the engine.
3. Disconnect the oxygen sensor from the wiring
harness.
4. If necessary, remove the fasteners holding the
headpipe to silencer.
5. Remove the spring holding the silencer to the vehicle.
6. Remove the exhaust assembly out the RH side of the
vehicle.
ENGINE / COOLING SYSTEM
