SHIFT CABLE SERVICE
SHIFT LEVER REMOVAL / INSTALLATION

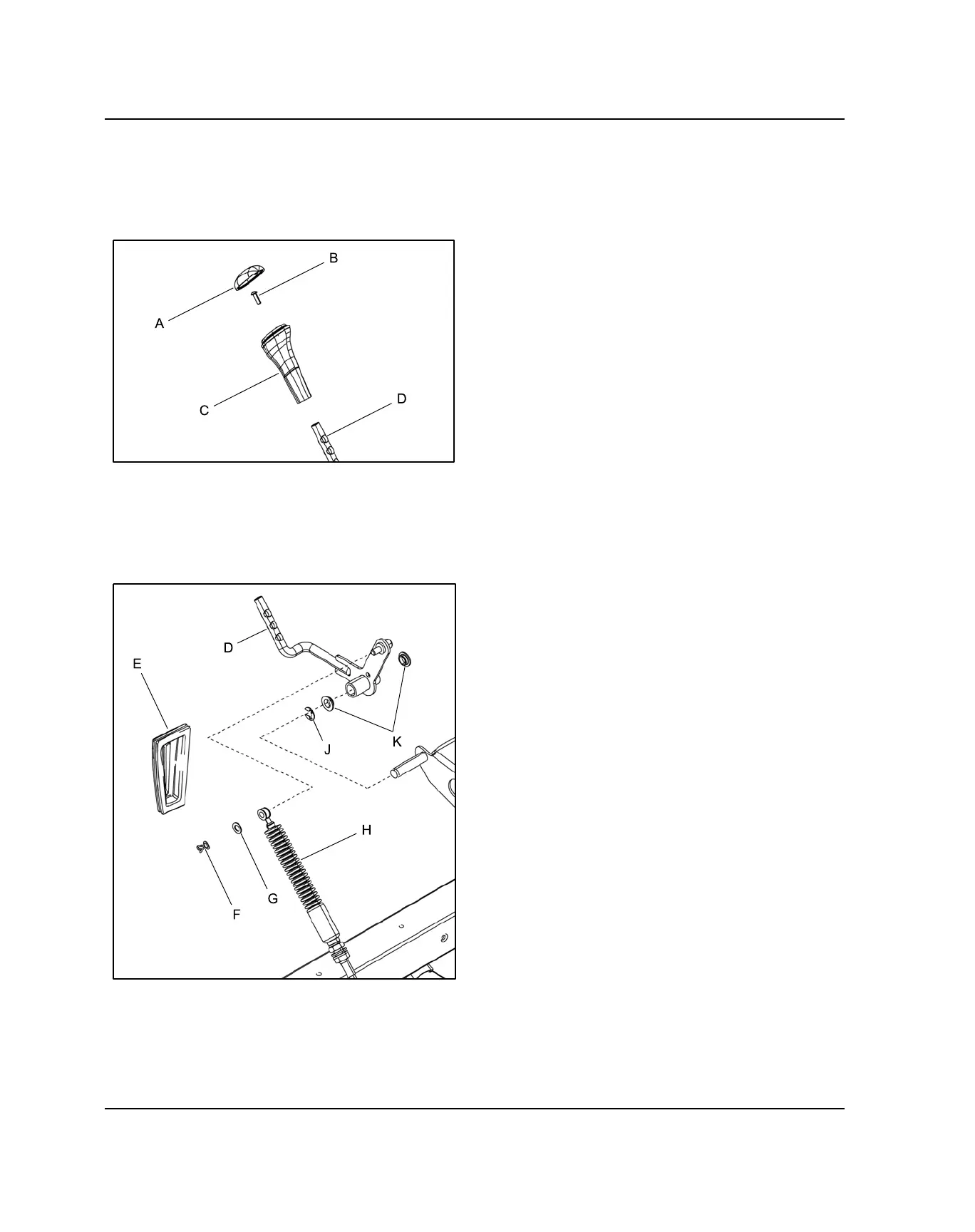

1. Remove the shift knob cover (A), retaining screw (B)
and shift knob (C) from the shift lever (D).
2. Remove the four push rivets retaining the upper
dash panel and remove the panel to access the shift
lever.
3. Remove the rubber grommet (E) from the dash and
shift lever (D).
4. Remove clip (F) and washer (G) retaining the shift
cable (H) to the shift lever (D). Disconnect cable end
from the lever.
5. Remove the retaining ring (J) and slide the shift lever
(D) off the mounting bracket and out from the frame.
6. Remove both bushings (K) from the shift lever and
service as needed.
7. Perform the previous steps in reverse order to
reinstall the shift lever (lever, cable, dash panel, shift
knob).
SHIFT CABLE INSPECTION
Shift cable adjustment may be necessary if symptoms
include:
• No gear position or AWD display on instrument cluster
• Ratcheting noise on deceleration
• Inability to engage into a gear
• Excessive gear lash (noise)
• Gear selector moving out of desired range
Inspect shift cable, clevis pins, and pivot bushings and
replace if worn or damaged.
