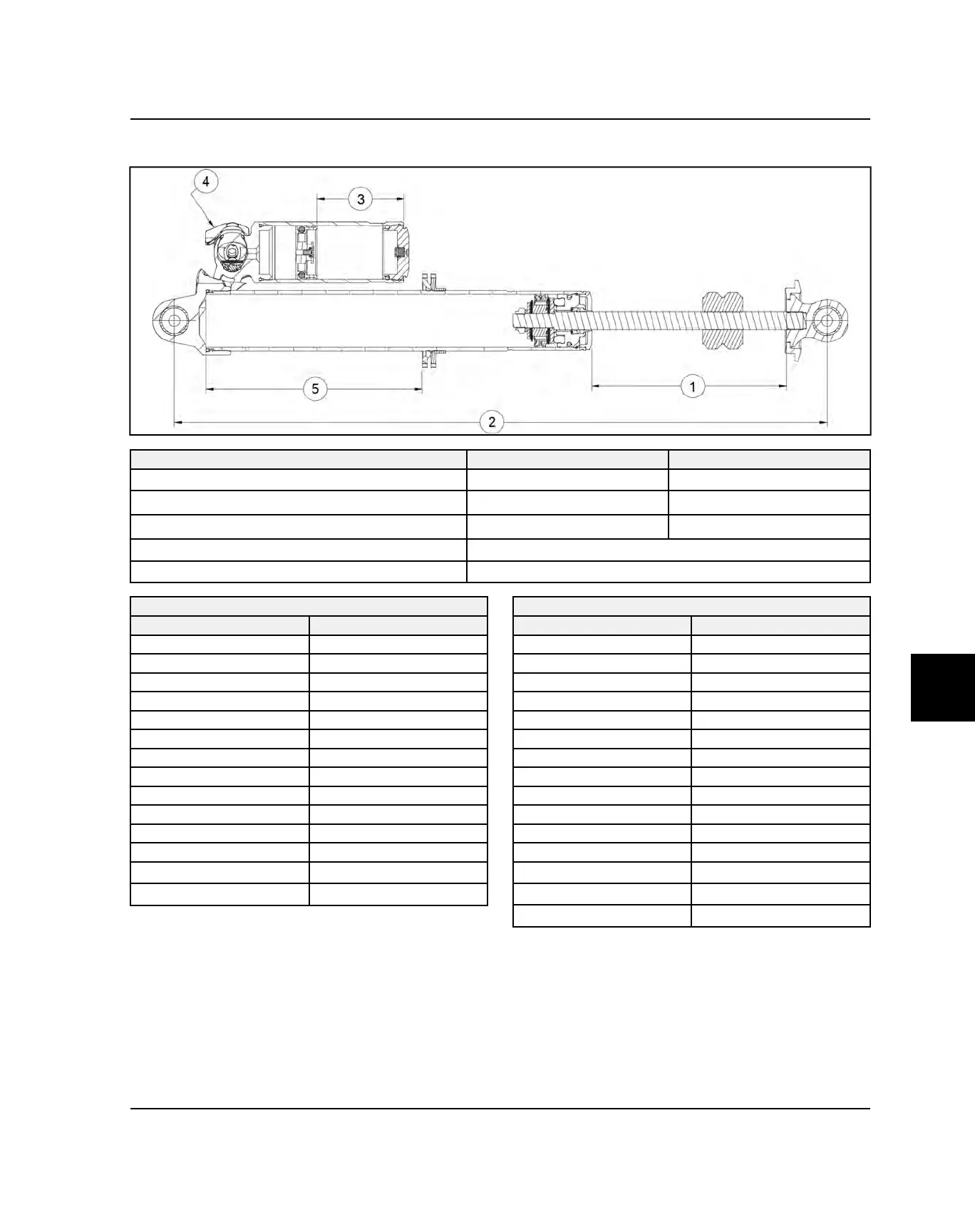

SHOCK SPECIFICATIONS — GENERAL 4
FRONT
REAR
Shock Travel
q
6.72 in (17.07 cm) 7.52 in (19.10 cm)
Extended Length
w
22.52 in (57.20 cm) 22.47 in (57.07 cm)
Spring Adjustment Setting (factory)
e
4.00 in (10.16 cm)
0.938 in (2.38 cm)
Nitrogen Pressure
100 ± 10 PSI (689.5 ± 69 kPa)
Gas Shock Oil FOX HIGH VI RACE OIL 2874124 (Qt)
FRONT SHOCK VALVING
COMPRESSION REBOUND
1.600 x .008 DB 1.425 x .008
1.600 x .008 1.425 x .015 R
1.600 x .008 1.250 x .006
1.600 x .008 1.425 x .006
1.600 x .008 1.425 x .006
0.750 x .015 1.425 x .006
1.600 x .012 1.425 x .006
1.600 x .012 0.850 x .010
1.600 x .012 0.850 x .008
1.600 x .012 1.425 x .015
1.600 x .012 1.350 x .015
1.600 x .012 1.250 x .015
1.250 x .006
1.230 x .082 Top Out
1.570 x .128 Top Out
.875 x .100 Back UP
REAR SHOCK VALVING
COMPRESSION REBOUND
1.600 x .006 DB 1.425 x .008
1.600 x .010 1.425 x .015 R
1.600 x .008 1.250 x .006
1.600 x .008 1.425 x .006
1.050 x .010 1.425 x .006
1.600 x .012 1.425 x .006
1.600 x .012 1.425 x .006
1.425 x .012 0.850 x .008
1.425 x .012 0.850 x .006
1.350 x .012 1.425 x .010
1.350 x .012 1.350 x .010
1.250 x .012 1.250 x .010
1.250 x .012
1.230 x .082 Top Out
1.100 x .012 .875 x .100 Back Up
1.570 x .128 Top Out
