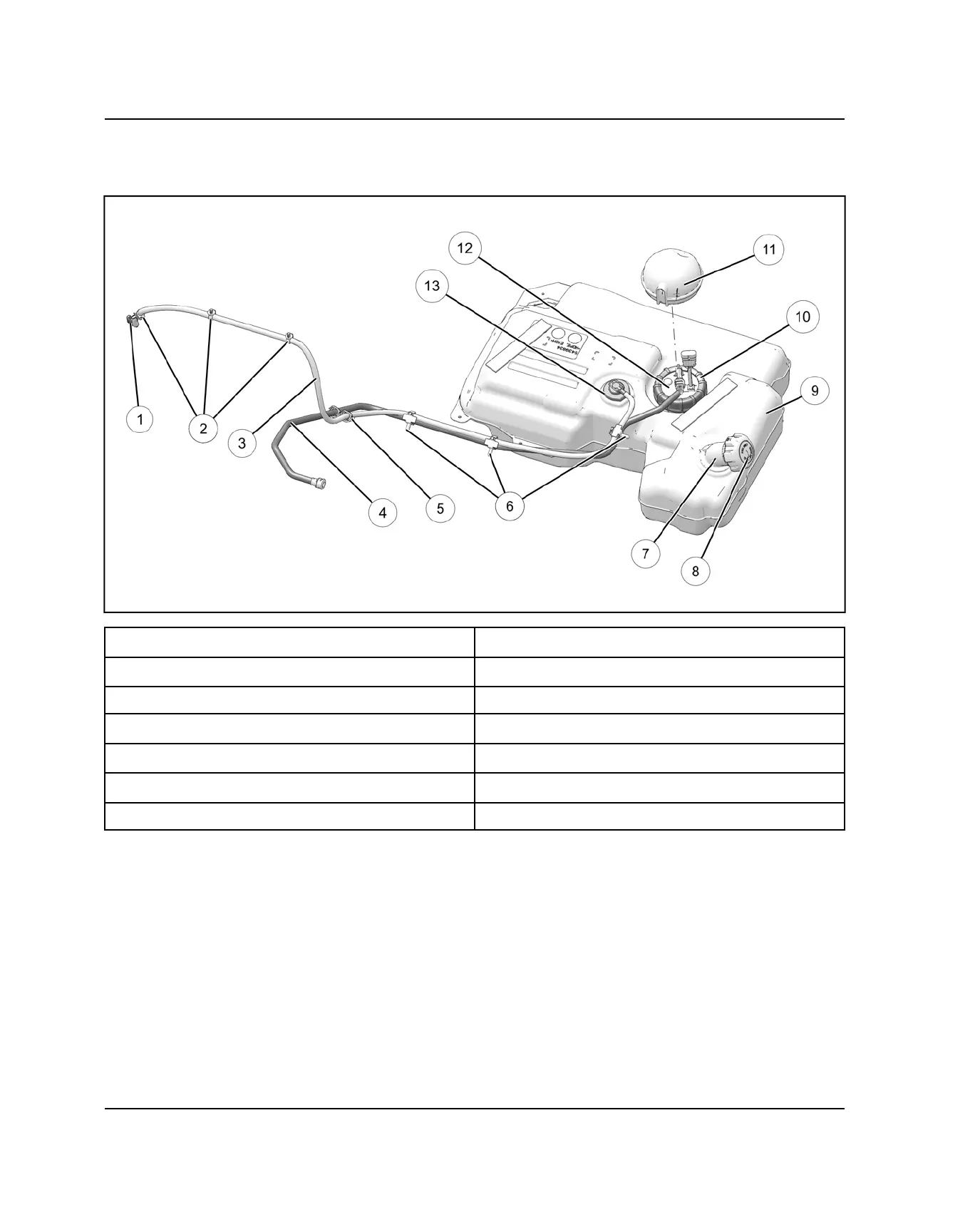

ASSEMBLY VIEWS - FUEL SYSTEM
FUEL SYSTEM ASSEMBLY VIEW
q
Vent Termination Fitting
i
Fuel Cap
w
Routing Clip, Hinged
o
Fuel Tank Assembly
e
Fuel Vent Line
a
PFA Nut
r
Fuel Feed Line
s
Fuel Pump Cap
t
Harness Clip
d
Fuel Sender
y
Routing Clip
f
Fuel Vent
u
Fuel Fill Neck
